CHA2069-QDG, 18-30GHz Low Noise Amplifier

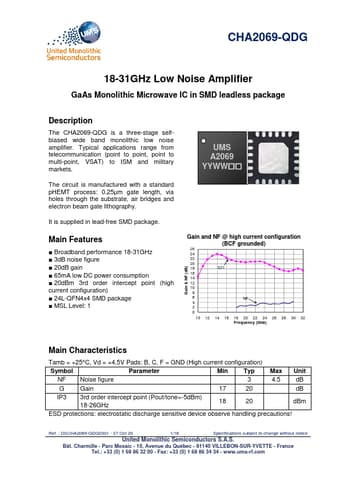

CHA2069-QDG 18-31GHz Low Noise Amplifier GaAs Monolithic Microwave IC in SMD leadless package .
The CHA2069-QDG is a three-stage selfbiased wide band monolithic low noise amplifier.

datasheet Preview Page 1 from Datasheet4u.com

CHA2069-QDG-UnitedMonolithicSemiconductors.pdf

CHA2069-QDG Datasheet Preview — Preview of CHA2069-QDG PDF

Datasheet Details

Part number:

CHA2069-QDG

Manufacturer:

United Monolithic Semiconductors

File Size:

437.74 KB

Description:

18-30GHz Low Noise Amplifier

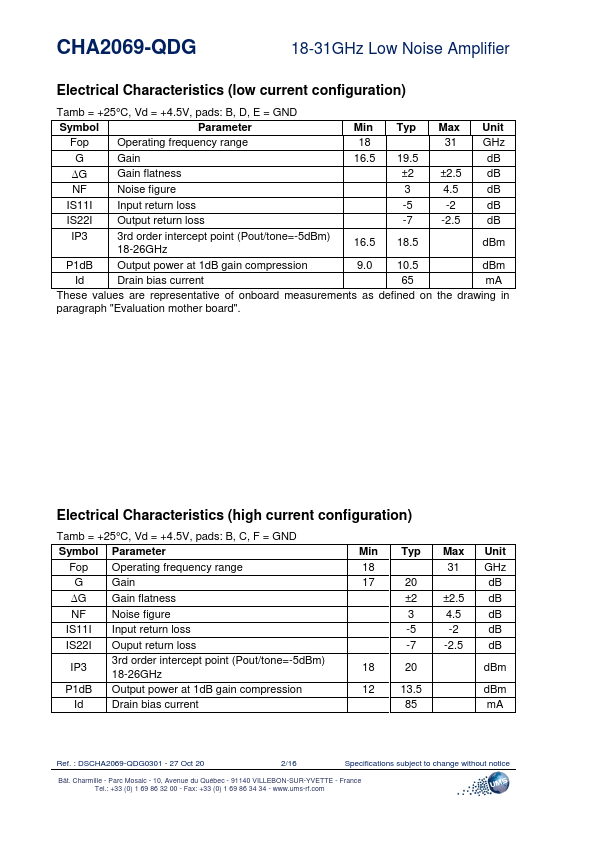

Features

* Broadband performance 18-31GHz
* 3dB noise figure
* 20dB gain
* 65mA low DC power consumption
* 20dBm 3rd order intercept point (high current configuration)
* 24L-QFN4x4 SMD package
* MSL Level: 1 Gain & NF (dB) UMS A2069 YYWW Gain and NF @ high current configurati

Applications

* range from telecommunication (point to point, point to multi-point, VSAT) to ISM and military markets. The circuit is manufactured with a standard pHEMT process: 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography. It is supplied in lead-free SMD packa
