CHA2069RAF Datasheet, Amplifier, United Monolithic Semiconductors

CHA2069RAF Features

  • Amplifier
  • Broad band performance: 18-31GHz
  • Gain = 21dB (typical)
  • Noise Figure 3.0 dB (typical for f<26GHz)
  • Return loss < -6dB
  • SMD leadless packag

PDF File Details

Part number:

CHA2069RAF

Manufacturer:

United Monolithic Semiconductors

File Size:

168.80kb

Download:

📄 Datasheet

Description:

18-31ghz low noise amplifier. The monolithic microwave IC (MMIC) in the package is a three-stage self biased wide band monolithic low noise amplifier. The MMIC is

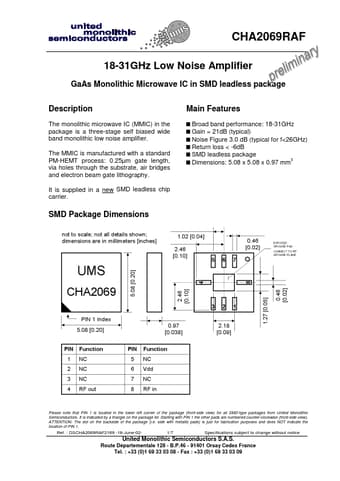

Datasheet Preview: CHA2069RAF 📥 Download PDF (168.80kb)
Page 2 of CHA2069RAF Page 3 of CHA2069RAF
