CHA2063A - 7-13GHz Low Noise Amplifier

Datasheet Summary

Description

The CHA2063a is a two-stage wide band monolithic low noise amplifier.

The circuit is manufactured with a PM-HEMT process : 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography.

It is supplied in chip form or in an hermetic leadless ceramic package.

Features

  • Broad band performance 7-13GHz.
  • 2.0dB noise figure, 8-13GHz.
  • 19dB gain.
  • Low DC power consumption, 40mA.
  • 18dBm 3rd order intercept point.
  • Chip size : 1,52 x 1,27 x 0.1mm Pin Out 1 - NC 2 - NC 3 - RF output 4 - NC 5 - Vdd 6 - RF input Main Characteristics Tamb = +25°C, package form Symbol NF G ∆G Parameter Noise figure, 7-8GHz Noise figure, 8-13GHz Gain Gain flatness 16 Min Typ 2.5 2.0 19 ± 2.0 Max 3.0 2.5 Unit dB dB dB ESD Protections : Electrostatic discharge se.

📥 Download Datasheet

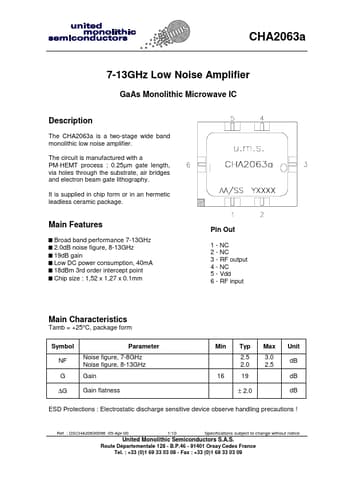

Datasheet preview – CHA2063A

Datasheet Details

Part number CHA2063A
Manufacturer United Monolithic Semiconductors
File Size 135.47 KB
Description 7-13GHz Low Noise Amplifier
Datasheet download datasheet CHA2063A Datasheet
Additional preview pages of the CHA2063A datasheet.

📁 Similar Datasheet

  • CHA-20NF - (CHA-20xx) Coaxial Attenuators (Component General)
  • CHA-20NM - (CHA-20xx) Coaxial Attenuators (Component General)
  • CHA-20NMF - (CHA-20xx) Coaxial Attenuators (Component General)
  • CHA-20SF - (CHA-20xx) Coaxial Attenuators (Component General)
  • CHA-20SM - (CHA-20xx) Coaxial Attenuators (Component General)
  • CHA-20SMF - (CHA-20xx) Coaxial Attenuators (Component General)
  • CHA02016 - High Frequency 70-GHz Thin Film Chip Resistor (Vishay)
  • CHA0402 - High Frequency 70-GHz Thin Film Chip Resistor (Vishay)
  • CHA3080-98F - 71 ~ 76 GHz Medium Power Amplifier (UMS)
  • CHA441 - Hall-effect sensor (Cosemitech)
Other Datasheets by United Monolithic Semiconductors

Full PDF Text Transcription

Click to expand full text
CHA2063a 7-13GHz Low Noise Amplifier GaAs Monolithic Microwave IC Description The CHA2063a is a two-stage wide band monolithic low noise amplifier. The circuit is manufactured with a PM-HEMT process : 0.25µm gate length, via holes through the substrate, air bridges and electron beam gate lithography. It is supplied in chip form or in an hermetic leadless ceramic package. Main Features ■ Broad band performance 7-13GHz ■ 2.0dB noise figure, 8-13GHz ■ 19dB gain ■ Low DC power consumption, 40mA ■ 18dBm 3rd order intercept point ■ Chip size : 1,52 x 1,27 x 0.1mm Pin Out 1 - NC 2 - NC 3 - RF output 4 - NC 5 - Vdd 6 - RF input Main Characteristics Tamb = +25°C, package form Symbol NF G ∆G Parameter Noise figure, 7-8GHz Noise figure, 8-13GHz Gain Gain flatness 16 Min Typ 2.5 2.0 19 ± 2.0 Max 3.
