CHA2069 - 18-31GHz Low Noise Amplifier

CHA2069 Description

CHA2069 RoHS COMPLIANT 18-31GHz Low Noise Amplifier GaAs Monolithic Microwave IC .
The circuit is a three-stage self biased wide band monolithic low noise amplifier.

CHA2069 Features

* ¦ Broad band performance 18-31GHz ¦ 2.5dB noise figure ¦ 22dB gain, ± 1dB gain flatness ¦ Low DC power consumption, 55mA ¦ 20dBm 3rd order intercept point ¦ Chip size : 2,170 x 1,270x 0.1mm 24 22 20 18 16 14 12 10 8 6 4 2 0 14 16 18 20 22 24 26 28 30 32 34 Frequency ( GHz ) On wafer typical measure

📥 Download Datasheet

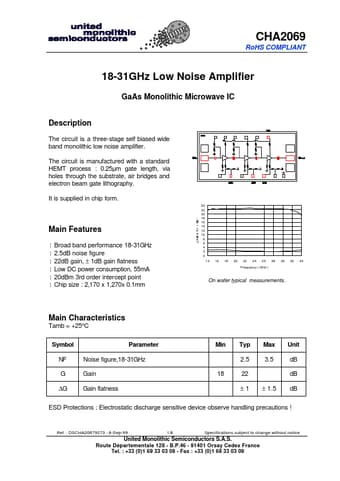

Preview of CHA2069 PDF
