CHA4042 Datasheet - United Monolithic Semiconductors

23-34GHz High Power Amplifier

CHA4042 Features

* ¾ Frequency Range: 23-34GHz ¾ Gain: 20dB ¾ Output Power (P-1dB): 25dBm ¾ Output TOI: 33dBm ¾ Input Return Loss: 18dB ¾ Output Return Loss: 11dB ¾ Bias: 6V, 300mA ¾ Dimensions: 1.93 x 1.09 x 0.07mm PrPerdeidcitcetded GGaainin& R&eturRneLtousrns 25 ← Gain 20 0 -5 15 -10 Output Rloss → 1

CHA4042 General Description

The CHA4042 is a three-stage pHEMT HPA MMIC designed for point-to-point and multi-point radio, and other Ka-band applications. The CHA4042 provides 25dBm nominal output power at 1dB gain compression over the 23-34GHz frequency range, and 20dB small signal gain. This product will be available in chip.

CHA4042 Datasheet (89.86 KB)

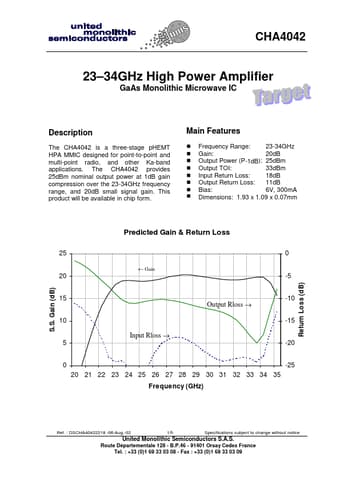

CHA4042 Datasheet Preview — Preview of CHA4042 PDF

Datasheet Details

Part number:

CHA4042

Manufacturer:

United Monolithic Semiconductors

File Size:

89.86 KB

Description:

23-34ghz high power amplifier.
