CHA4105-QDG Datasheet, Driver, United Monolithic Semiconductors

CHA4105-QDG Features

• Driver
• Broadband performances: 2-4GHz
• 24dBm @ 1dB gain compression
• 23dB Gain
• DC bias: V+ = 5V ; V- = -5V
• DC power consumption: 180mA

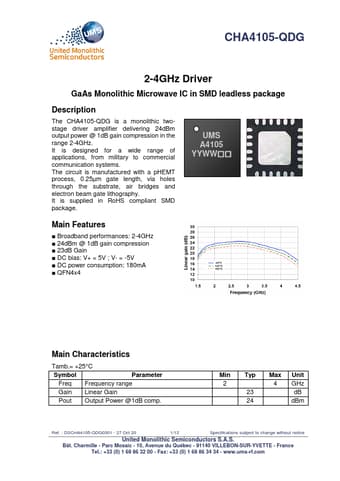

PDF File Details

Part number:

CHA4105-QDG

Manufacturer:

United Monolithic Semiconductors

File Size:

583.66kb

Download:

📄 Datasheet

Description:

2-4ghz driver. The CHA4105-QDG is a monolithic twostage driver amplifier delivering 24dBm output power @ 1dB gain compression in the range 2-4GHz. I

CHA4105-QDG Application

• Applications from military to commercial communication systems. The circuit is manufactured with a pHEMT process, 0.25µm gate length, via holes thr
