CHA4105-99F - 2-4GHz Driver

CHA4105-99F Description

CHA4105-99F 2-4GHz Driver GaAs Monolithic Microwave IC .
The CHA4105-99F is a monolithic two-stage V+ driver amplifier delivering 24dBm output power @ 1dB gain compression in the 2-4GHz frequency range.

CHA4105-99F Features

* Broadband performances: 2-4GHz
* 24dBm @ 1dB gain compression
* 23dB Gain
* DC bias: V+ = 5V ; V- = -5V
* DC power consumption: 180mA
* Chip size: 1.74 x 1.6 x 0.1 mm OUT +25°C-40°C +85°C Main Characteristics Tamb. = +25°C Symbol Parameter Min Typ Max Unit Freq Freque

📥 Download Datasheet

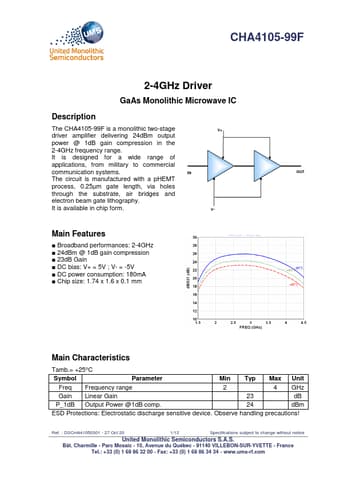

Preview of CHA4105-99F PDF
