CHA4092 Datasheet, Amplifier, United Monolithic Semiconductors

CHA4092 Features

• Amplifier þ Broadband performances : 20-30GHz þ 22 dBm output power ( 1dB gain comp. ) þ 17 dB ± 1.5 dB gain þ Chip size : 1.65 X 2.15 X 0.10 mm 20 15 10 5 0 Gain (dB) -5 -10 -15 -20 -25 -30

PDF File Details

Part number:

CHA4092

Manufacturer:

United Monolithic Semiconductors

File Size:

87.33kb

Download:

📄 Datasheet

Description:

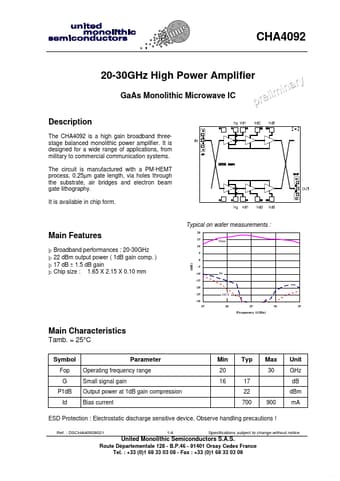

20-30ghz high power amplifier. The CHA4092 is a high gain broadband threestage balanced monolithic power amplifier. It is designed for a wide range of applications,

CHA4092 Application

• Applications from military to commercial communication systems. The circuit is manufactured with a PM-HEMT process, 0.25µm gate length, via holes t
