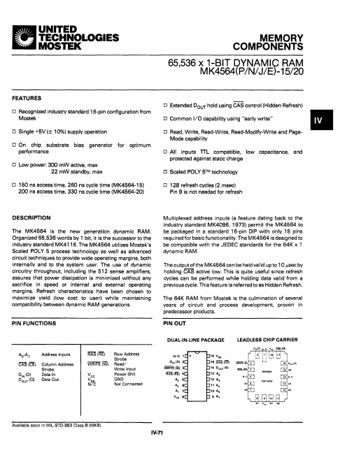

MK4564-15 65536 x 1-Bit DRAM

The MK4564 is the new generation dynamic RAM. Organized 65,536 words by 1 bit, it is the successor to the industry standard MK4116. The MK4564 utilizes Mostek's Scaled POLY 5 process technology as well as advanced circuit techniques to provide wide operating margins, both internally and to the syste.

MK4564-15 Features

* o Recognized industry standard 16-pin configuration from Mostek o Single +5V (± 10%) supply operation o On chip substrate bias generator for optimum performance o Low power: 300 mW active, max 22 mW standby, max o 150 ns access time, 260 ns cycle time (MK4564-15) 200 ns access time, 330 ns cycle tim
