MK4564E-12

65536 x 1-Bit DRAM

MK4564E-12 Datasheet (359.33 KB)

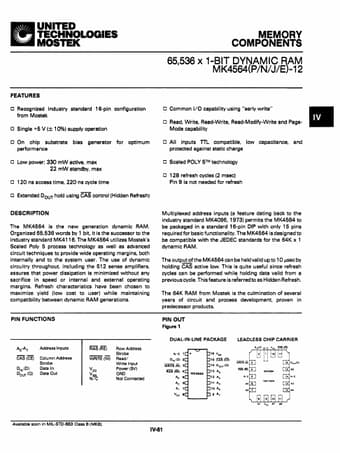

Preview of MK4564E-12 PDF Datasheet

Datasheet Details

Part number:

MK4564E-12

Manufacturer:

United Technologies Mostek

File Size:

359.33 KB

Description:

65536 x 1-bit dram

MK4564E-12 Features

* o Recognized industry standard 16-pin configuration from Mostek o Single +6 V (± 1()oAI) supply operation o On chip substrate bias generator for optimum performance o Low power: 330 mW active, max 22 mW standby, max o 120 ns access time, 220 ns cycle time o Extended Dour hold using CAS control (Hidd

MK4564E-12 General Description

The MK4664 is the new generation dynamic RAM. Organized 66,636 words by 1 bit, it is the successor to the industry standard MK4116. The MK4664 utilizes Mostek's Scaled Poly 6 process technology as well as advanced circuit techniques to provide wide operating margins, both internally and to the syste.
