MK4564-12 Datasheet - United Technologies Mostek

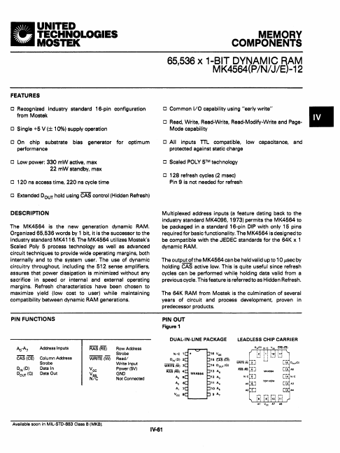

MK4564-12 65536 x 1-Bit DRAM

The MK4664 is the new generation dynamic RAM. Organized 66,636 words by 1 bit, it is the successor to the industry standard MK4116. The MK4664 utilizes Mostek's Scaled Poly 6 process technology as well as advanced circuit techniques to provide wide operating margins, both internally and to the syste.

MK4564-12 Features

* o Recognized industry standard 16-pin configuration from Mostek o Single +6 V (± 1()oAI) supply operation o On chip substrate bias generator for optimum performance o Low power: 330 mW active, max 22 mW standby, max o 120 ns access time, 220 ns cycle time o Extended Dour hold using CAS control (Hidd

MK4564-12-UnitedTechnologiesMostek.pdf
