UC3578

Buck Pulse Width Modulator Stepdown Voltage Regulator

UC3578 Features

* Provides Simple Single Inductor Buck PWM Step-Down Voltage Regulation

* Drives External High Side NMOS Switch

* 14V to 72V Input Voltage Operating Range

* Contains 100kHz Internal Oscillator, 2V Reference and UVLO

* Soft Start on Power Up

* Overcurre

UC3578 General Description

The UC3578 is a PWM controller with an integrated high side floating gate driver. It is used in buck step down converters and regulates a positive output voltage. Intended to be used in a distributed power system, the IC allows operation from 14V to 72V input voltage which range includes the prevale.

UC3578 Datasheet (566.90 KB)

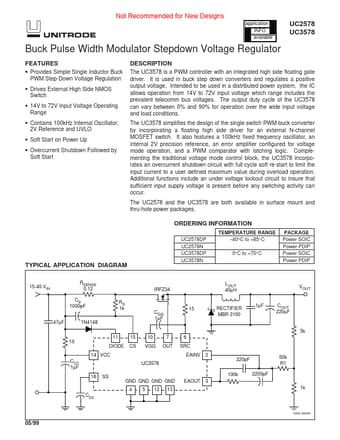

Preview of UC3578 PDF

Datasheet Details

Part number:

UC3578

Manufacturer:

Unitrode

File Size:

566.90 KB

Description:

Buck pulse width modulator stepdown voltage regulator.
