2SJ344 - P-Channel 60V MOSFET

2SJ344 Description

2SJ344-VB 2SJ344-VB Datasheet P-Channel 60 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () - 60 4 at VGS = - 10 V VGS(th) (V.

2SJ344 Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* High-Side Switching
* Low On-Resistance: 4 Ω
* Low Threshold: - 2 V (typ. )
* Fast Swtiching Speed: 20 ns (typ. )
* Low Input Capacitance: 20 pF (typ. )
* Compli

2SJ344 Applications

* Drivers: Relays, Solenoids, Lamps, Hammers, Display, Memories, Transistors, etc.
* Battery Operated Systems
* Power Supply Converter Circuits
* Solid-State Relays BENEFITS
* Ease in Driving Switches
* Low Offset (Error) Voltage
* Low-Voltage

📥 Download Datasheet

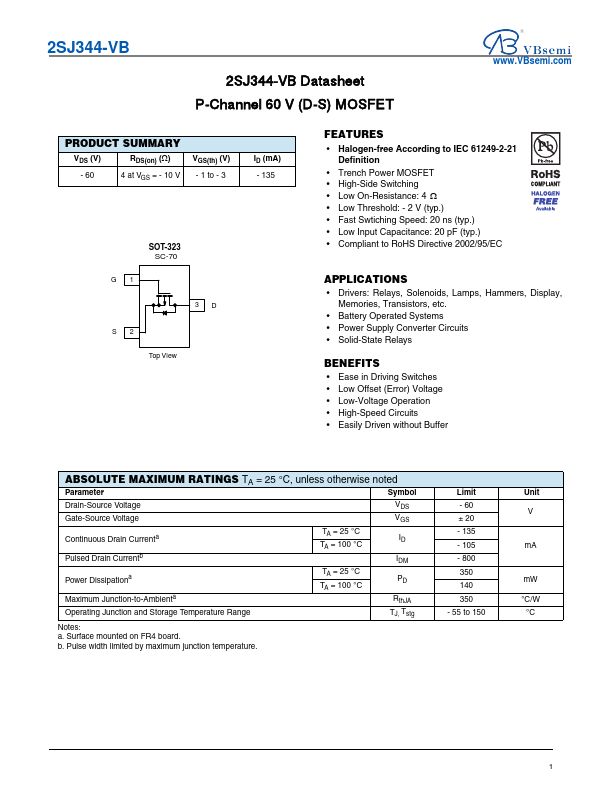

Preview of 2SJ344 PDF

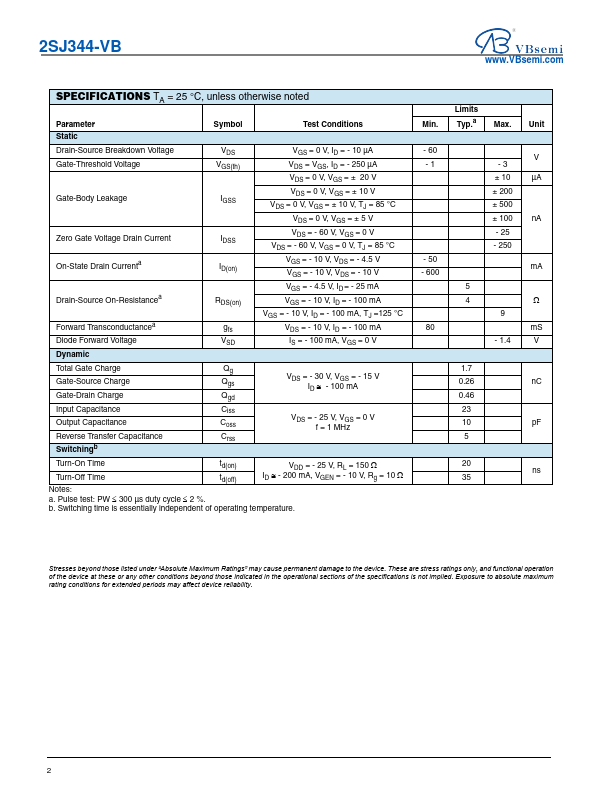

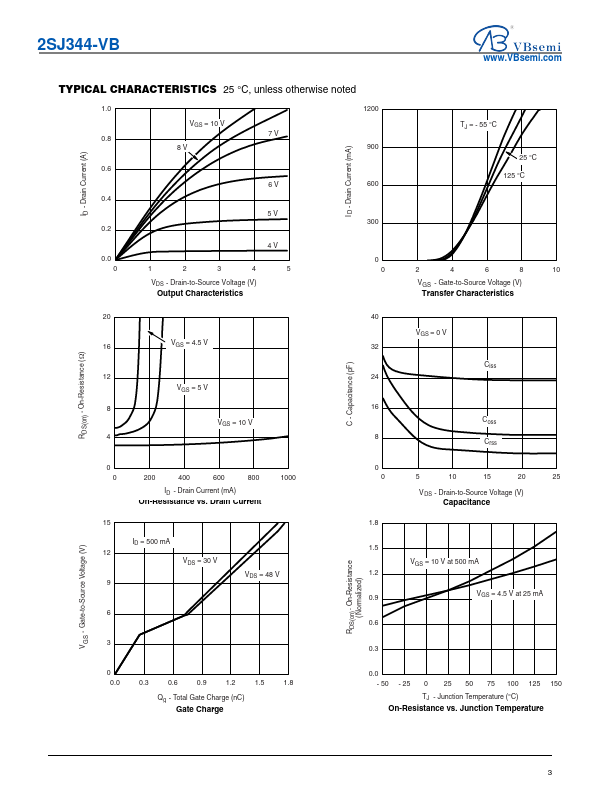

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SJ344
Manufacturer
VBsemi
File Size
237.59 KB
Datasheet
2SJ344-VBsemi.pdf
Description
P-Channel 60V MOSFET
