2SJ333 - P-Channel 30V MOSFET

2SJ333 Description

2SJ333-VB 2SJ333-VB Datasheet P-Channel 30-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.033 at VGS = - 10 V 0.046 at VGS = - 4.5 V.

2SJ333 Features

* Halogen-free
* TrenchFET® Power MOSFET
* 100 % Rg Tested

2SJ333 Applications

* Load Switch
* Notebook Adaptor Switch G www. VBsemi. com RoHS COMPLIANT GDS Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ =

📥 Download Datasheet

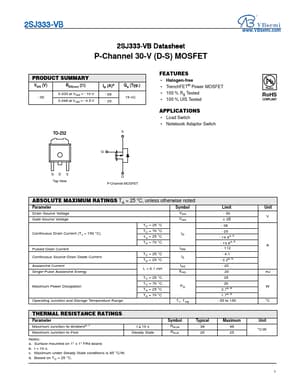

Preview of 2SJ333 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SJ333
Manufacturer
VBsemi
File Size
204.41 KB
Datasheet
2SJ333-VBsemi.pdf
Description
P-Channel 30V MOSFET
