4P03L04, P-Channel 30V MOSFET

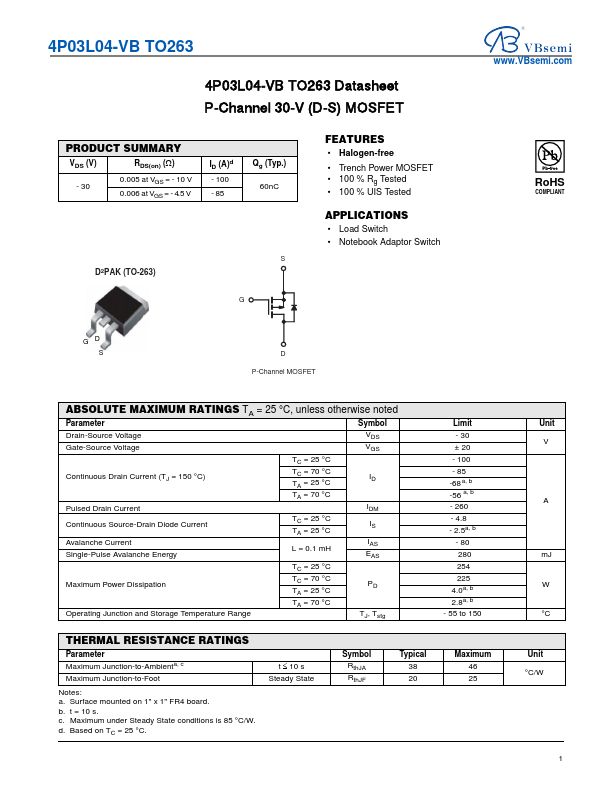

4P03L04-VB TO263 4P03L04-VB TO263 Datasheet P-Channel 30-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.005 at VGS = - 10 V 0.006 at.

datasheet Preview Page 1 from Datasheet4u.com

4P03L04-VBsemi.pdf

4P03L04 Datasheet Preview — Preview of 4P03L04 PDF

Datasheet Details

Part number:

4P03L04

Manufacturer:

VBsemi

File Size:

238.59 KB

Description:

P-Channel 30V MOSFET

Features

* Halogen-free
* Trench Power MOSFET
* 100 % Rg Tested

Applications

* Load Switch
* Notebook Adaptor Switch www. VBsemi. com RoHS COMPLIANT GD S D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150 °C) T
