AOD425 P-Channel 30V MOSFET

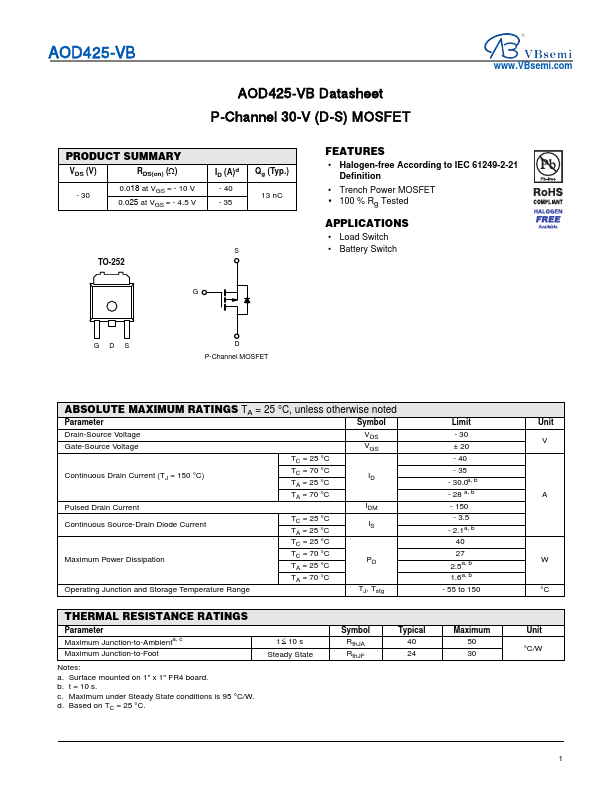

📥 Download Datasheet  Datasheet Preview Page 1

Description

AOD425-VB AOD425-VB Datasheet P-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.018 at VGS = - 10 V 0.025 .

📥 Download Datasheet

Preview of AOD425 PDF

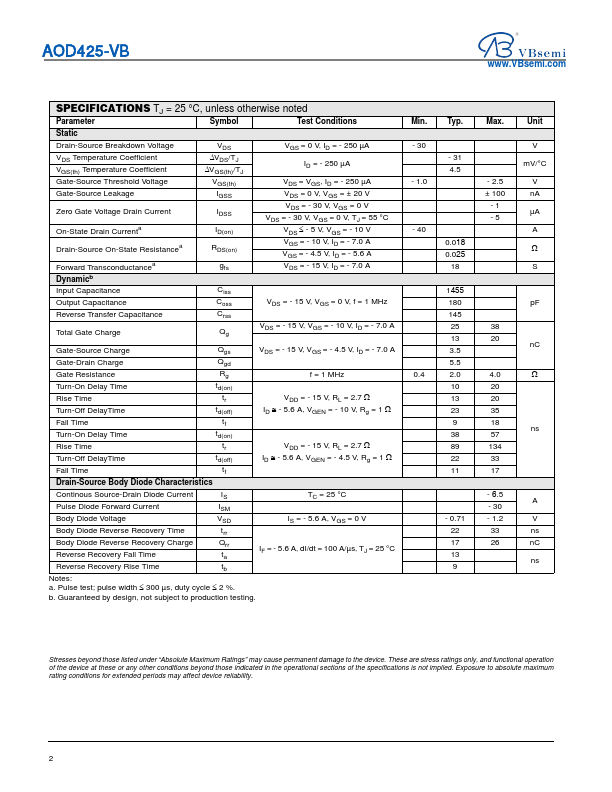

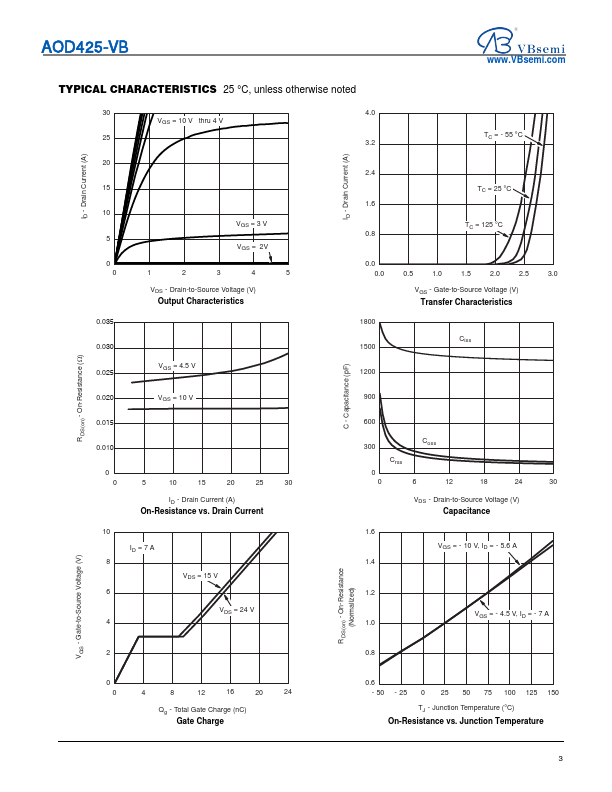

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
AOD425
Manufacturer
VBsemi
File Size
214.47 KB
Datasheet
AOD425-VBsemi.pdf
Description
P-Channel 30V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET

Applications

* Load Switch
* Battery Switch GD S D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C ID Pulsed Drain C
