AOD409, P-Channel MOSFET

AOD409 AOD409 P-Channel 60 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () - 60 0.046 at VGS = - 10 V 0.058 at VGS = - 4.5 V.

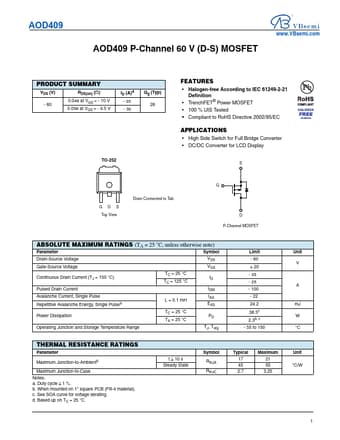

datasheet Preview Page 1 from Datasheet4u.com

AOD409-VBsemi.pdf

AOD409 Datasheet Preview — Preview of AOD409 PDF

Datasheet Details

Part number:

AOD409

Manufacturer:

VBsemi

File Size:

468.15 KB

Description:

P-Channel MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % UIS Tested

Applications

* High Side Switch for Full Bridge Converter
* DC/DC Converter for LCD Display S GDS Top View Drain Connected to Tab G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise note) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuo
