AOD404

N-Channel MOSFET

AOD404 Features

* VDS (V) = 30V ID = 85A (VGS = 10V) RDS(ON) < 7mΩ (VGS = 10V) RDS(ON) < 8mΩ (VGS = 4.5V) Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol VDS Drain-Source Voltage VGS Gate-Source Voltage Continuous Drain Current B,G Pulsed Drain Current Avalanche Current C Repetitive avalanch

AOD404 General Description

The AOD404 uses advanced trench technology to provide excellent RDS(ON), low gate chargeand low gate resistance. This device is ideally suited for use as a high side switch in CPU core power conversion. Standard Product AOD404 is Pb-free (meets ROHS & Sony 259 specifications). AOD404L is a Green Pro.

AOD404 Datasheet (180.79 KB)

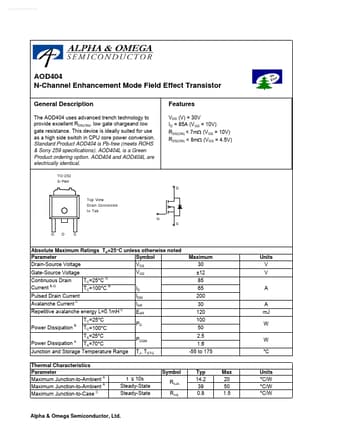

Preview of AOD404 PDF

Datasheet Details

Part number:

AOD404

Manufacturer:

Alpha & Omega Semiconductors

File Size:

180.79 KB

Description:

N-channel mosfet.
