AOD405 Datasheet, Mosfet, Alpha & Omega Semiconductors

AOD405 Features

  • Mosfet VDS (V) = -30V ID = -18A RDS(ON) < 32mΩ (VGS = 20V) RDS(ON) < 60mΩ (VGS = 10V) TO-252 D-PAK D Top View Drain Connected to Tab G S GD S Absolute Maximum Ratings TA=25°C unless oth

PDF File Details

Part number:

AOD405

Manufacturer:

Alpha & Omega Semiconductors

File Size:

211.10kb

Download:

📄 Datasheet

Description:

P-channel mosfet. The AOD405 uses advanced trench technology to provide excellent RDS(ON), low gate chargeand low gate resistance. With the excellent t

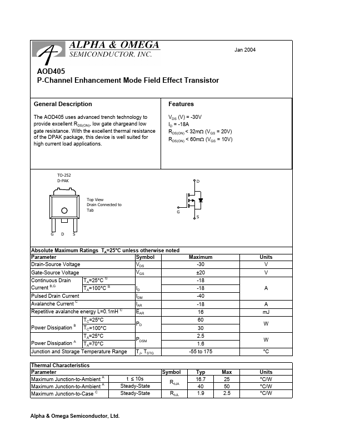

Datasheet Preview: AOD405 📥 Download PDF (211.10kb)
Page 2 of AOD405 Page 3 of AOD405

AOD405 Application

  • Applications Features VDS (V) = -30V ID = -18A RDS(ON) < 32mΩ (VGS = 20V) RDS(ON) < 60mΩ (VGS = 10V) TO-252 D-PAK D Top View Drain Connected t
