AOD4102, N-Channel MOSFET

isc N-Channel MOSFET Transistor AOD4102 .
Designed for use in switch mode power supplies and general purpose applications.

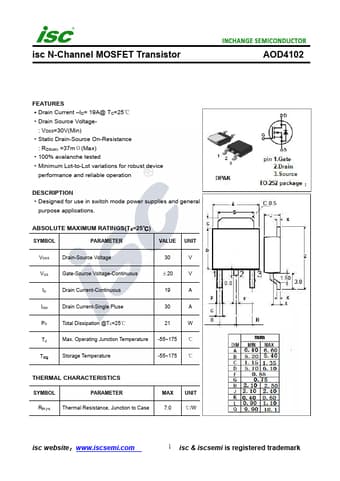

datasheet Preview Page 1 from Datasheet4u.com

AOD4102-INCHANGE.pdf

AOD4102 Datasheet Preview — Preview of AOD4102 PDF

Datasheet Details

Part number:

AOD4102

Manufacturer:

INCHANGE

File Size:

260.42 KB

Description:

N-Channel MOSFET

Features

* Drain Current
* ID= 19A@ TC=25℃
* Drain Source Voltage- : VDSS=30V(Min)
* Static Drain-Source On-Resistance : RDS(on) =37mΩ(Max)
* 100% avalanche tested

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 30 V VGS Gate-Source Voltage-Continuous ±20 V ID Drain Current-Continuous 19 A IDM Drain Current-Single Pluse 30 A PD Total Dissipation @TC=25℃ 21 W TJ Max. Operating Junction Temperatur
