AOD4104 Datasheet, Mosfet, Alpha & Omega Semiconductors

AOD4104 Features

  • Mosfet VDS (V) = 25V ID = 75A (VGS = 10V) RDS(ON) < 3.6m Ω (VGS = 20V) RDS(ON) < 4.5m Ω (VGS = 12V) RDS(ON) < 5.4m Ω (VGS = 10V) 100% UIS Tested! 100% Rg Tested! Top View D Bottom View D G

PDF File Details

Part number:

AOD4104

Manufacturer:

Alpha & Omega Semiconductors

File Size:

227.40kb

Download:

📄 Datasheet

Description:

N-channel mosfet. The AOD4104 uses advanced trench technology to provide excellent RDS(ON), shoot-through immunity and body diode characteristics. This

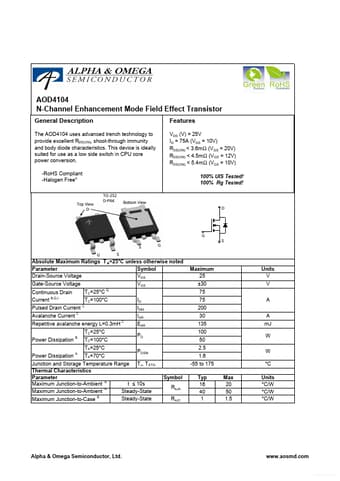

Datasheet Preview: AOD4104 📥 Download PDF (227.40kb)
Page 2 of AOD4104 Page 3 of AOD4104

AOD4104 Application

  • Applications OR USES AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS ARE NOT AUTHORIZED. AOS DOES NOT ASSUME ANY LIABILITY ARISING OUT OF
