AOD4110 Datasheet, Mosfet, Alpha & Omega Semiconductors

AOD4110 Features

  • Mosfet VDS (V) = 30V ID =40A (VGS = 10V) RDS(ON) < 7.2mΩ (VGS = 10V) RDS(ON) < 10.5mΩ (VGS = 4.5V) UIS Tested! Rg,Ciss,Coss,Crss Tested D TO-252 D-PAK Top View Drain Connected to Tab G S S

PDF File Details

Part number:

AOD4110

Manufacturer:

Alpha & Omega Semiconductors

File Size:

136.59kb

Download:

📄 Datasheet

Description:

N-channel mosfet. The AOD4110 uses advanced trench technology with a monolithically integrated Schottky diode to provide excellent RDS(ON),and low gate

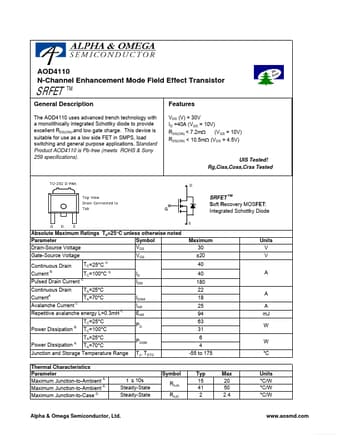

Datasheet Preview: AOD4110 📥 Download PDF (136.59kb)
Page 2 of AOD4110 Page 3 of AOD4110

AOD4110 Application

  • Applications Standard Product AOD4110 is Pb-free (meets ROHS & Sony 259 specifications). Features VDS (V) = 30V ID =40A (VGS = 10V) RDS(ON) < 7.2m
