AP2N7002K N-Channel 60V MOSFET

VBsemi

Description

AP2N7002K-VB AP2N7002K-VB Datasheet N-Channel 60-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 60 2.8 at VGS = 10 V ID (mA).

📥 Download Datasheet

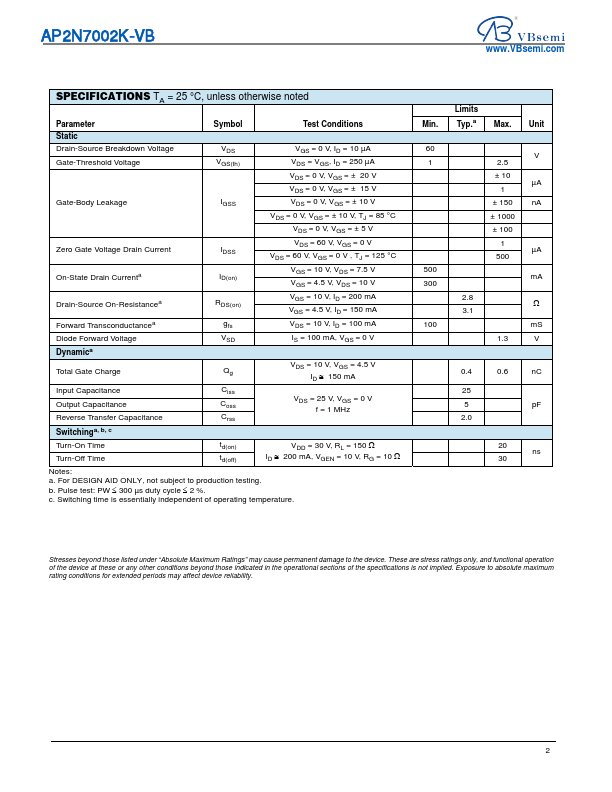

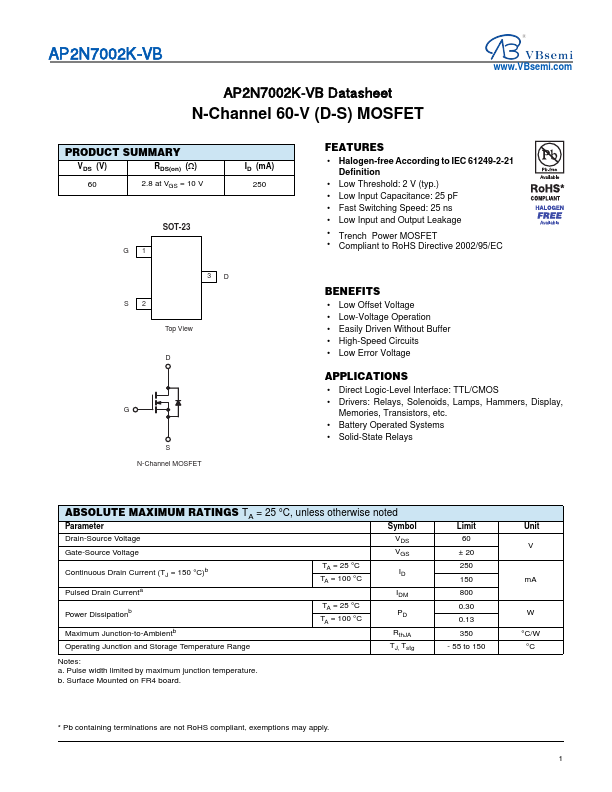

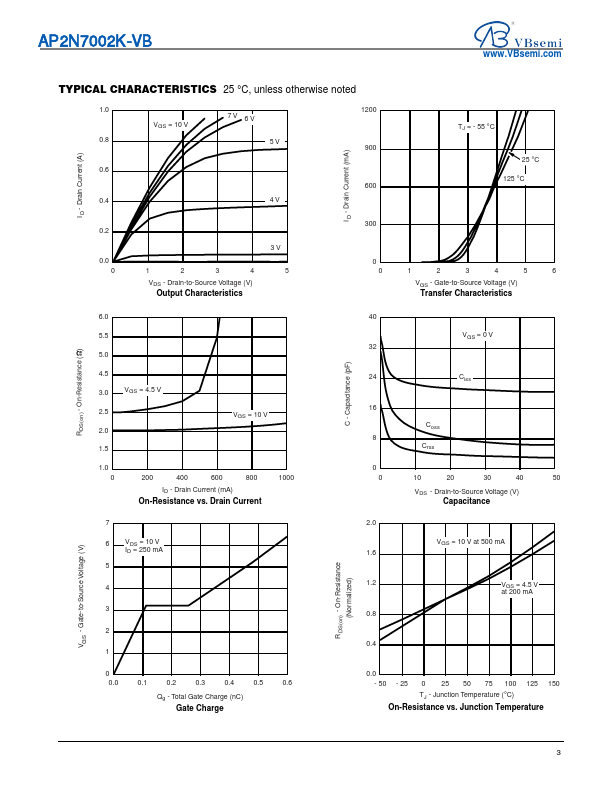

AP2N7002K Datasheet Preview — Preview of AP2N7002K PDF

Datasheet Specifications

Part number: AP2N7002K
Manufacturer: VBsemi
File Size: 253.59 KB
Datasheet: AP2N7002K-VBsemi.pdf
Description: N-Channel 60V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Low Threshold: 2 V (typ. )
* Low Input Capacitance: 25 pF
* Fast Switching Speed: 25 ns
* Low Input and Output Leakage
* Trench Power MOSFET
* Compliant to RoHS Directive 2002/95/EC BENEFIT

Applications

* Direct Logic-Level Interface: TTL/CMOS
* Drivers: Relays, Solenoids, Lamps, Hammers, Display, Memories, Transistors, etc.
* Battery Operated Systems
* Solid-State Relays ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Vo
