BUK655-500B N-Channel 600-V Power MOSFET

VBsemi

Description

BUK655-500B-VB BUK655-500B-VB Datasheet /$IBOOFM07 %4 Power MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () Qg max.(nC) Qgs (nC) Q.

📥 Download Datasheet

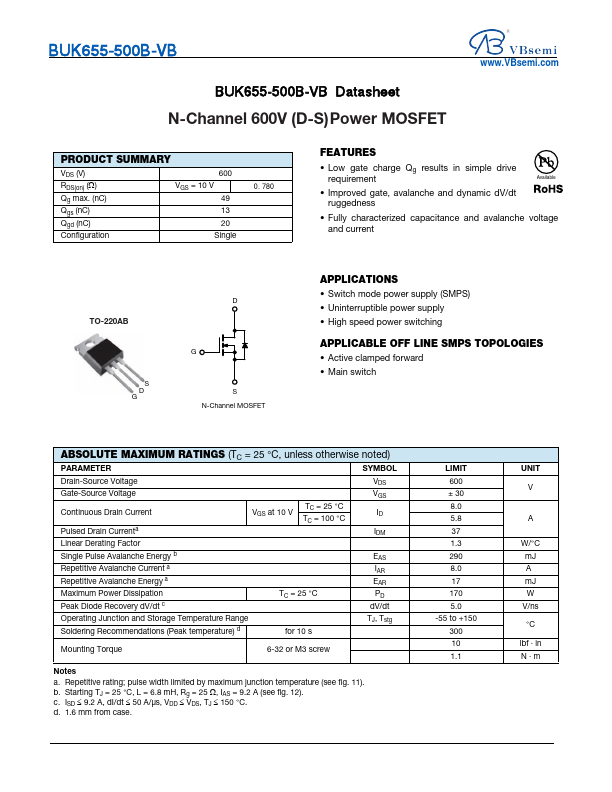

BUK655-500B Datasheet Preview — Preview of BUK655-500B PDF

Datasheet Specifications

Part number: BUK655-500B
Manufacturer: VBsemi
File Size: 289.27 KB
Datasheet: BUK655-500B-VBsemi.pdf
Description: N-Channel 600-V Power MOSFET

Features

* Low gate charge Qg results in simple drive requirement Available
* Improved gate, avalanche and dynamic dV/dt ruggedness

Applications

* Switch mode power supply (SMPS)
* Uninterruptible power supply
* High speed power switching APPLICABLE OFF LINE SMPS TOPOLOGIES
* Active clamped forward
* Main switch ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-So
