Datasheet Specifications
- Part number
- CEM9430A
- Manufacturer
- VBsemi
- File Size
- 252.10 KB
- Datasheet
- CEM9430A-VBsemi.pdf
- Description
- P-Channel 20-V MOSFET
Description

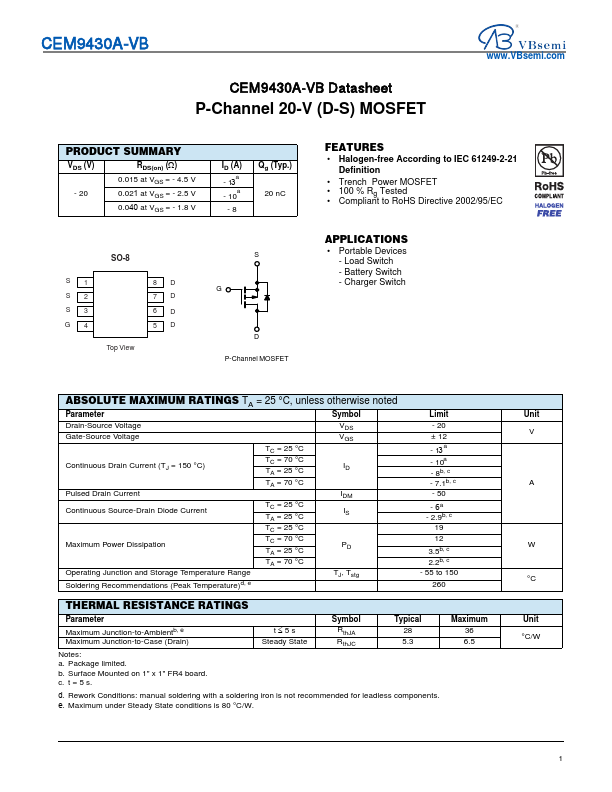

CEM9430A-VB CEM9430A-VB Datasheet P-Channel 20-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.015 at VGS = - 4.5 V - 20 0.
Features
* Halogen-free According to IEC 61249-2-21 DefinitionApplications
* Portable Devices - Load Switch - Battery Switch - Charger Switch ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current Continuous Source-Drain Diode Current MaximCEM9430A Distributors
