CEM9935 Dual N-Channel 20V MOSFET

CEM9935 Description

CEM9935-VB CEM9935-VB Datasheet Dual N-Channel 20-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 20 0.019 at VGS = 4.5 V 0.0.

CEM9935 Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % Rg Tested
* Compliant to RoHS Directive 2002/95/EC S1 1 G1 2 S2 3 G2 4 SO-8 Top View 8 D1 7 D1 6 D2 5 D2 D1 D2 G1 G2 S1 N-Channel MOSFET S2 N-Channel MOSFET ABSOLUTE MAXIMUM

📥 Download Datasheet

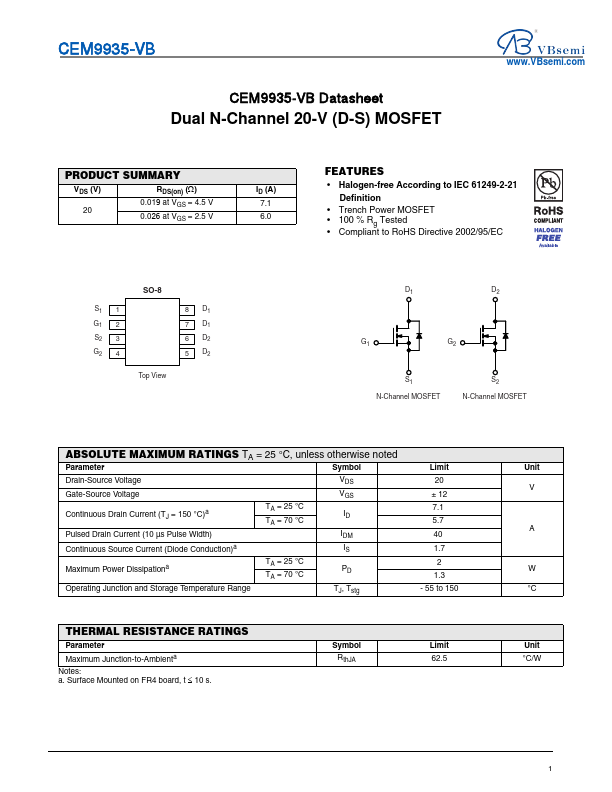

Preview of CEM9935 PDF

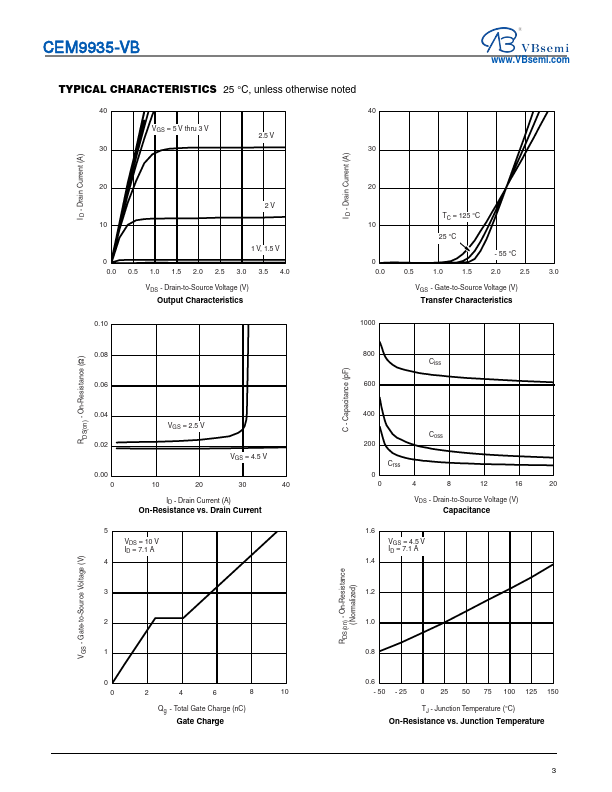

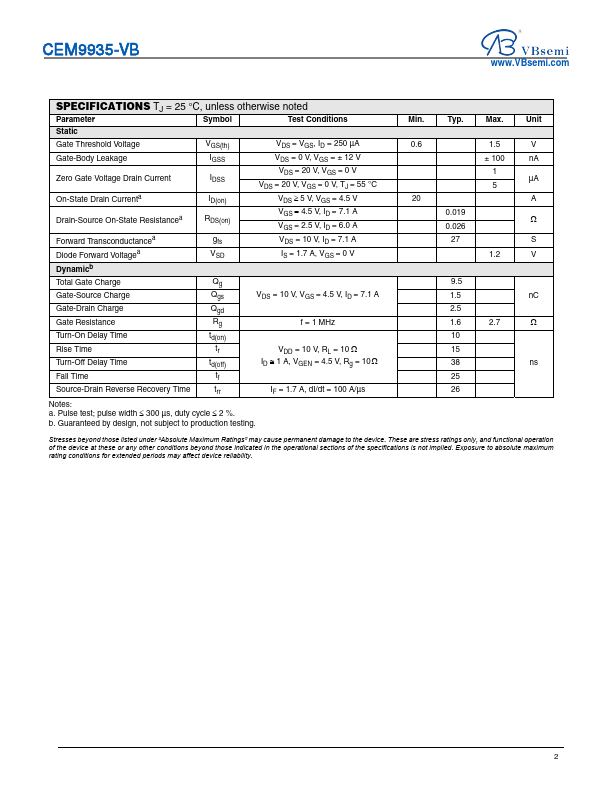

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CEM9935
Manufacturer
VBsemi
File Size
254.49 KB
Datasheet
CEM9935-VBsemi.pdf
Description
Dual N-Channel 20V MOSFET
