CEM2187 Dual P-Channel 20V MOSFET

VBsemi

Description

CEM2187-VB CEM2187-VB Datasheet Dual P-Channel 20V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.018 at VGS = - 4.5 V - 20 .

📥 Download Datasheet

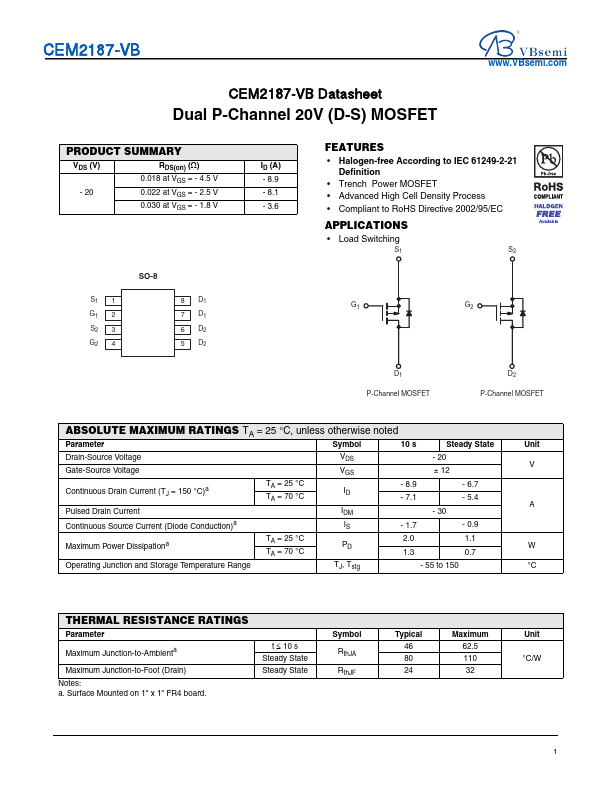

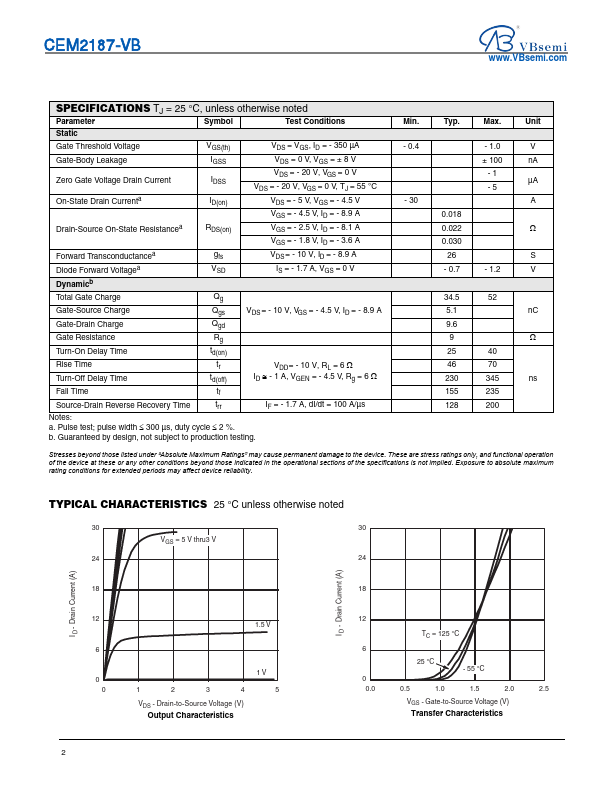

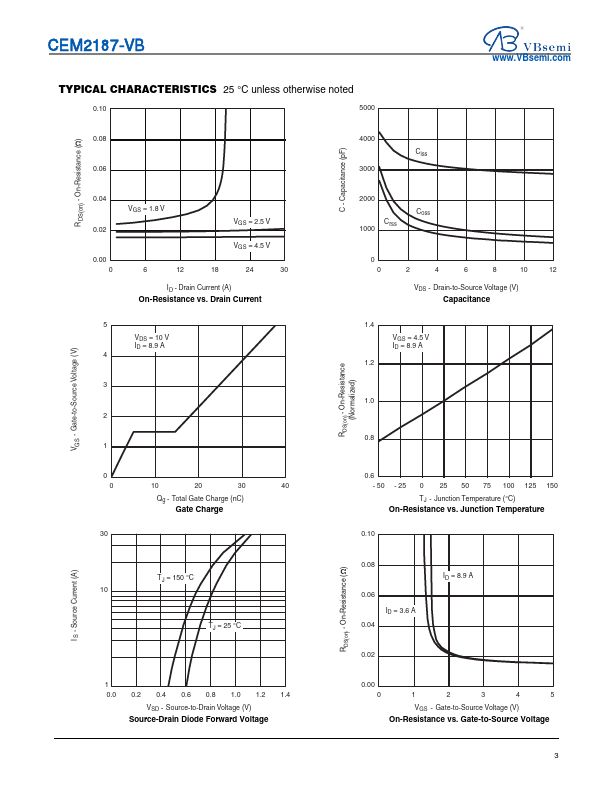

CEM2187 Datasheet Preview — Preview of CEM2187 PDF

Datasheet Specifications

Part number: CEM2187
Manufacturer: VBsemi
File Size: 426.30 KB
Datasheet: CEM2187-VBsemi.pdf
Description: Dual P-Channel 20V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* Advanced High Cell Density Process

Applications

* Load Switching S1 S2 G1 G2 D1 P-Channel MOSFET D2 P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol 10 s Steady State Unit Drain-Source Voltage Gate-Source Voltage VDS - 20 V VGS ± 12 Continuous Drain Current (TJ = 150 °C)a Pu
