CEM2539 N-Channel 20-V MOSFET

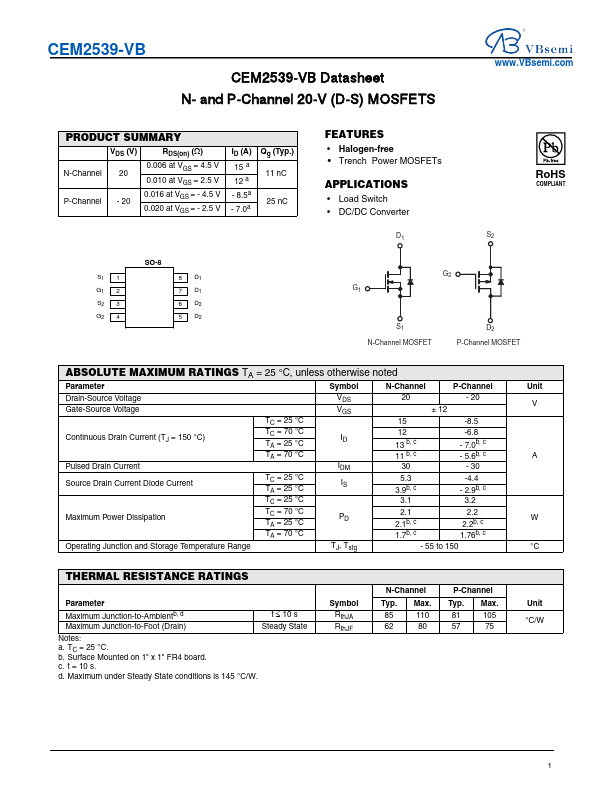

📥 Download Datasheet Datasheet Preview Page 1

Description

CEM2539-VB CEM2539-VB Datasheet N- and P-Channel 20-V (D-S) MOSFETS www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.006 at VGS = 4.5 V N-Ch.

📥 Download Datasheet

Preview of CEM2539 PDF

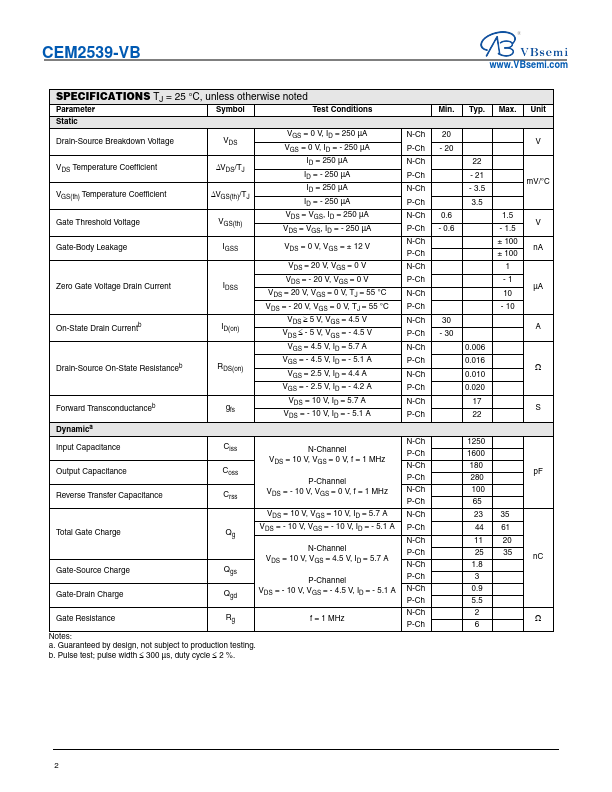

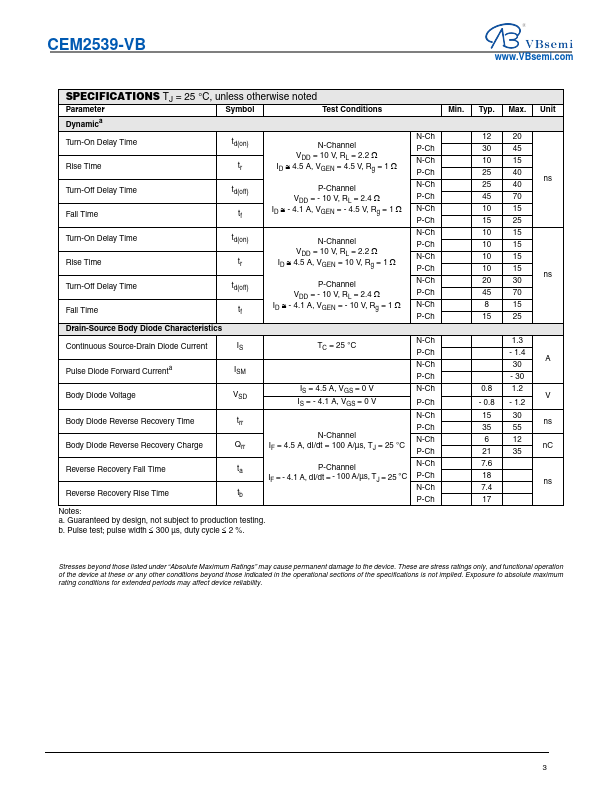

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
CEM2539
Manufacturer
VBsemi
File Size
303.85 KB
Datasheet
CEM2539-VBsemi.pdf
Description
N-Channel 20-V MOSFET

Features

* Halogen-free

Applications

* Load Switch
* DC/DC Converter D1 RoHS COMPLIANT S2 G2 G1 S1 N-Channel MOSFET D2 P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol N-Channel P-Channel Unit Drain-Source Voltage Gate-Source Voltage VDS 20 - 20 V VGS ± 12 TC
