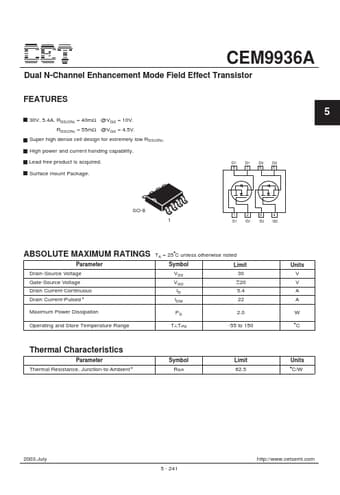

CEM9936A Datasheet, Mosfet, Chino-Excel Technology

✔ CEM9936A Features

30V, 5.4A, RDS(ON) = 40mΩ @VGS = 10V. RDS(ON) = 55mΩ @VGS = 4.5V. Super high dense cell design for extremely low RDS(ON). High power and current handing capability. Lead

PDF File Details

Chino-Excel Technology manufacturer logo

Part number:

CEM9936A

Manufacturer:

Chino-Excel Technology

File Size:

82.93kb

Download:

📄 Datasheet

Description:

Dual n-channel mosfet.

📥 Download PDF (82.93kb)
