CEM9926A Datasheet, Mosfet, Chino-Excel Technology

CEM9926A Features

  • Mosfet 20V, 6A, RDS(ON) = 27mΩ @VGS = 4.5V. RDS(ON) = 40mΩ @VGS = 2.5V. Super high dense cell design for extremely low RDS(ON). High power and current handing capability. Lead free product is

PDF File Details

Part number:

CEM9926A

Manufacturer:

Chino-Excel Technology

File Size:

407.07kb

Download:

📄 Datasheet

Description:

Dual n-channel mosfet.

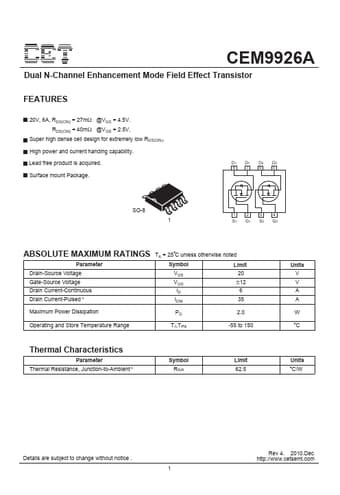

Datasheet Preview: CEM9926A 📥 Download PDF (407.07kb)
Page 2 of CEM9926A Page 3 of CEM9926A
