* Halogen-free According to IEC 61249-2-21 Available
* Trench Power MOSFET
* 100 % Rg Tested
* 100 % UIS Tested APPLICATIONS
* Battery Switch
* DC/DC Converter D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Paramet
CHM2362PT Datasheet (256.22 KB)
CHM2362PT
VBsemi
256.22 KB
N-channel 60v mosfet.

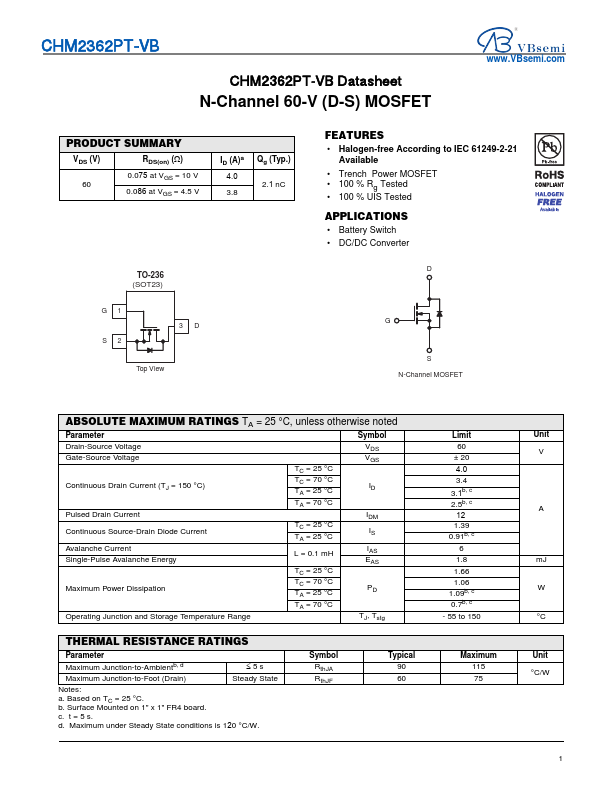

CHM2362PT-VB CHM2362PT-VB Datasheet N-Channel 60-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.075 at VGS = 10 V 60 0.086 .
