HM4454 - N-Channel 100V MOSFET

HM4454 Description

HM4454-VB HM4454-VB Datasheet N-Channel 100 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 100 RDS(on) (Ω) 0.020 at VGS = 10 V 0.027 at VG.

HM4454 Features

* Halogen-free According to IEC 61249-2-21 Definition
* Extremely Low Qgd for Switching Losses
* 100 % Rg Tested
* 100 % Avalanche Tested

HM4454 Applications

* Primary Side Switch ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) TC = 25 °C TC = 70 °C TA = 25 °C TA = 70 °C Pulsed Drain Current Continuous Source-Drain Diode Current

📥 Download Datasheet

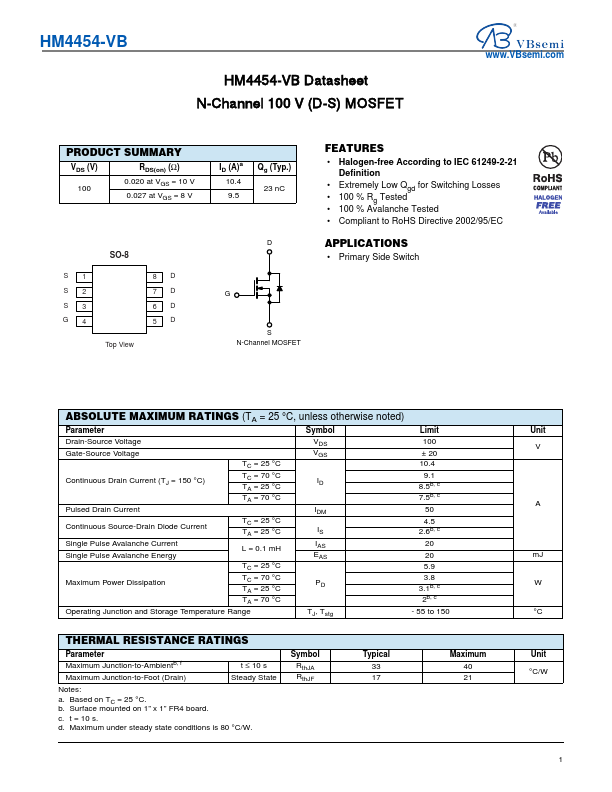

Preview of HM4454 PDF

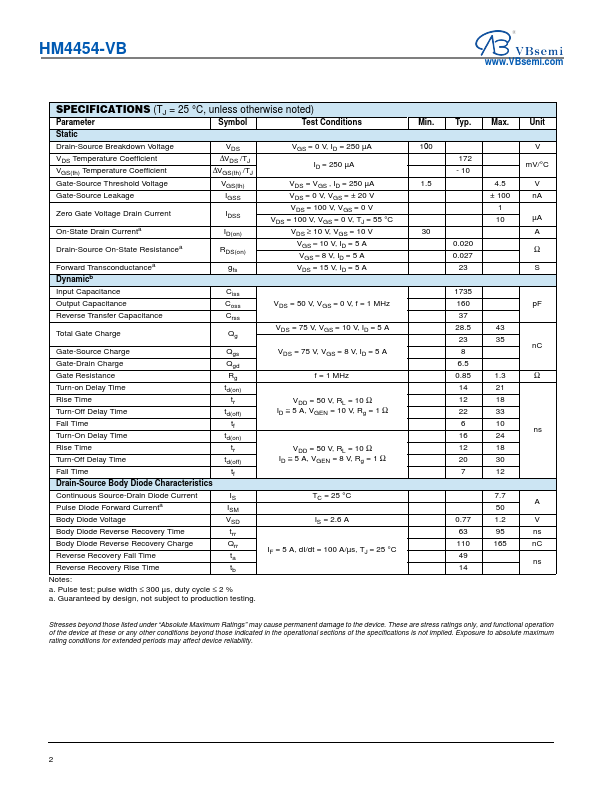

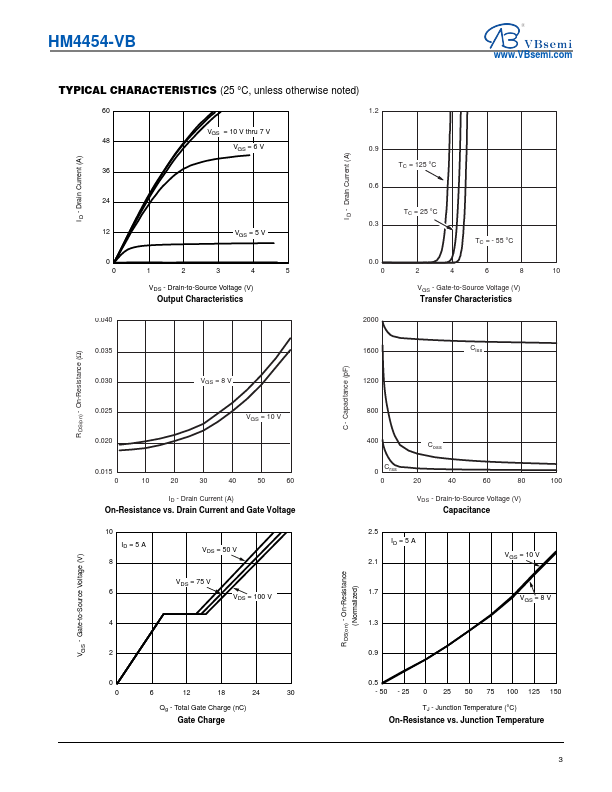

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM4454
Manufacturer
VBsemi
File Size
258.17 KB
Datasheet
HM4454-VBsemi.pdf
Description
N-Channel 100V MOSFET
