HM4488 - N-Channel 150-V MOSFET

HM4488 Description

HM4488-VB HM4488-VB Datasheet N-Channel 150 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 150 0.040 at VGS = 10 V 0.035 at.

HM4488 Features

* Halogen-free According to IEC 61249-2-21 Definition
* Extremely Low Qgd for Switching Losses
* 100 % Rg Tested
* 100 % Avalanche Tested

HM4488 Applications

* Primary Side Switch D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 150 V VGS ± 20 TC = 25 °C 7.7 Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C ID 6

📥 Download Datasheet

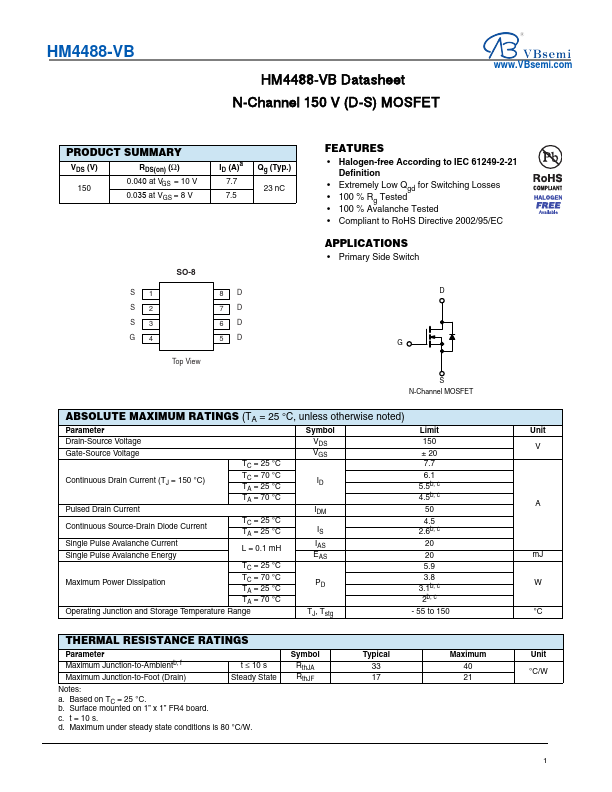

Preview of HM4488 PDF

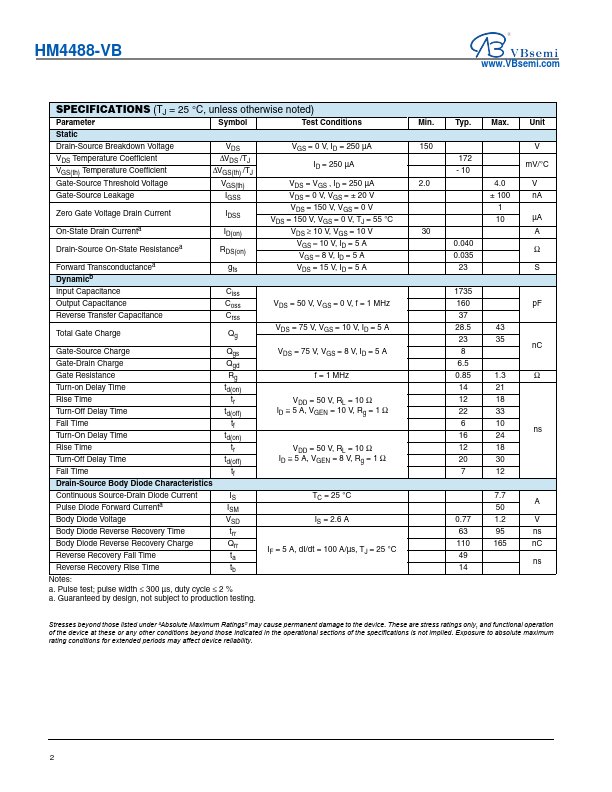

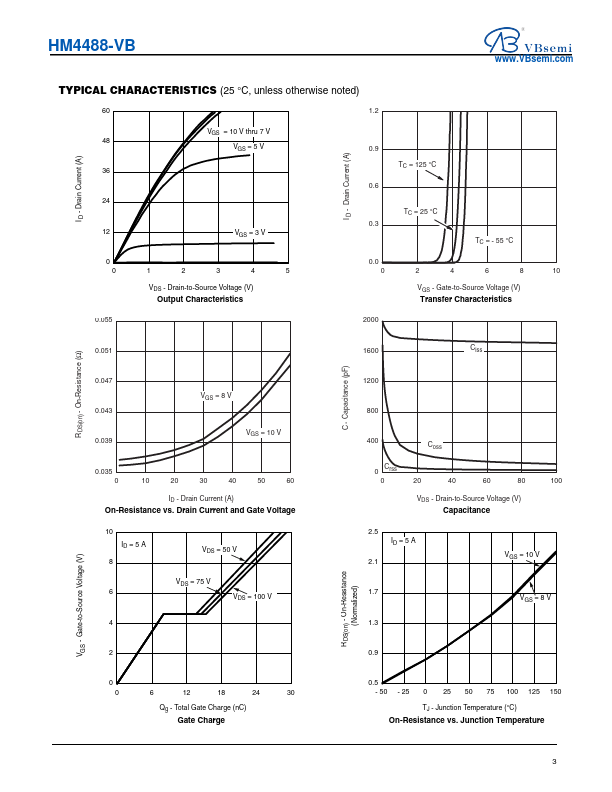

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM4488
Manufacturer
VBsemi
File Size
292.36 KB
Datasheet
HM4488-VBsemi.pdf
Description
N-Channel 150-V MOSFET
