Datasheet Specifications
- Part number
- HM530
- Manufacturer
- VBsemi
- File Size
- 208.28 KB
- Datasheet
- HM530-VBsemi.pdf
- Description
- N-Channel 100V MOSFET
Description

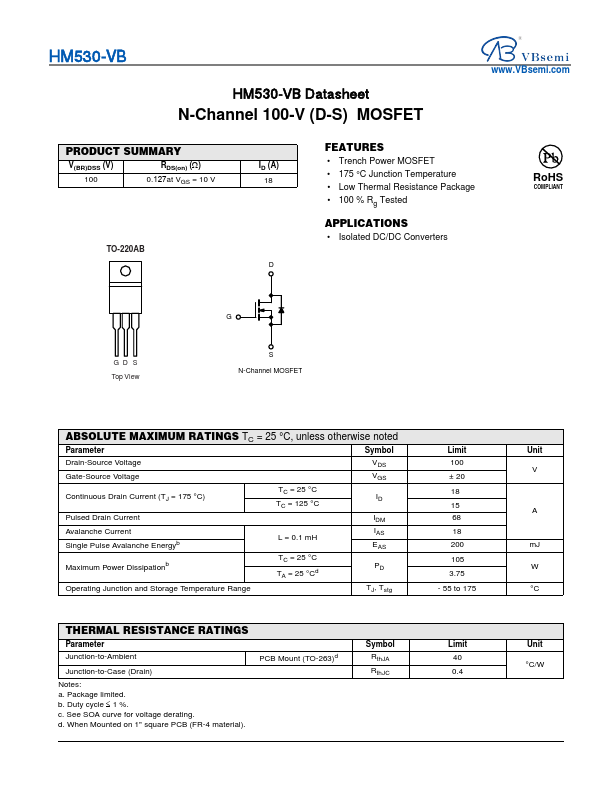

HM530-VB HM530-VB Datasheet N-Channel 100-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY V(BR)DSS (V) RDS(on) (Ω) 100 0.127at VGS = 10 V ID (A).
Features
* Trench Power MOSFETApplications
* Isolated DC/DC Converters RoHS COMPLIANT GD S Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C) TC = 25 °C TC = 125 °C ID Pulsed DrHM530 Distributors
