IRF8721TRPBF, N-Channel 30V MOSFET

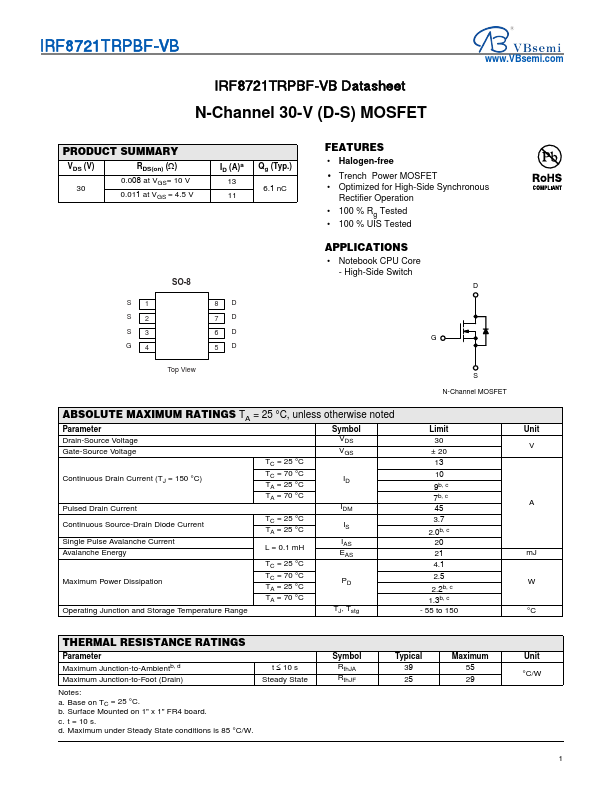

IRF8721TRPBF-VB IRF8721TRPBF-VB Datasheet N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 30 0.008 at VGS= 10 V .

datasheet Preview Page 1 from Datasheet4u.com

IRF8721TRPBF-VBsemi.pdf

IRF8721TRPBF Datasheet Preview — Preview of IRF8721TRPBF PDF

Datasheet Details

Part number:

IRF8721TRPBF

Manufacturer:

VBsemi

File Size:

199.28 KB

Description:

N-Channel 30V MOSFET

Features

* Halogen-free
* Trench Power MOSFET
* Optimized for High-Side Synchronous Rectifier Operation
* 100 % Rg Tested

Applications

* Notebook CPU Core - High-Side Switch D G Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 30 VGS ± 20 V TC = 25 °C 13 Continuous Drain Current (TJ = 150 °C) TC =
