IRF9Z24NS P-Channel MOSFET

IRF9Z24NS Description

IRF9Z24NS IRF9Z24NS Datasheet P-Channel 60 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () Max.0.048at VGS = - 10 V - 60 0.06.

IRF9Z24NS Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested

IRF9Z24NS Applications

* Power Switch
* Load Switch in High Current Applications
* DC/DC Converters GD S D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 150 °C

📥 Download Datasheet

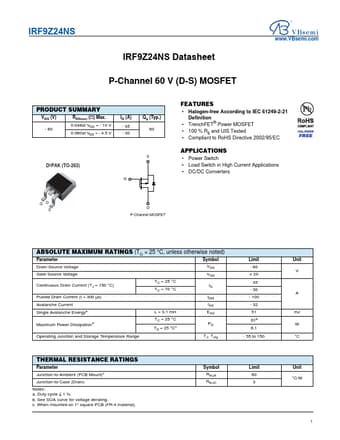

Preview of IRF9Z24NS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRF9Z24NS
Manufacturer
VBsemi
File Size
437.90 KB
Datasheet
IRF9Z24NS-VBsemi.pdf
Description
P-Channel MOSFET
