K2340 Power MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

K2340-VB K2340-VB Datasheet Power MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration 950 V.

📥 Download Datasheet

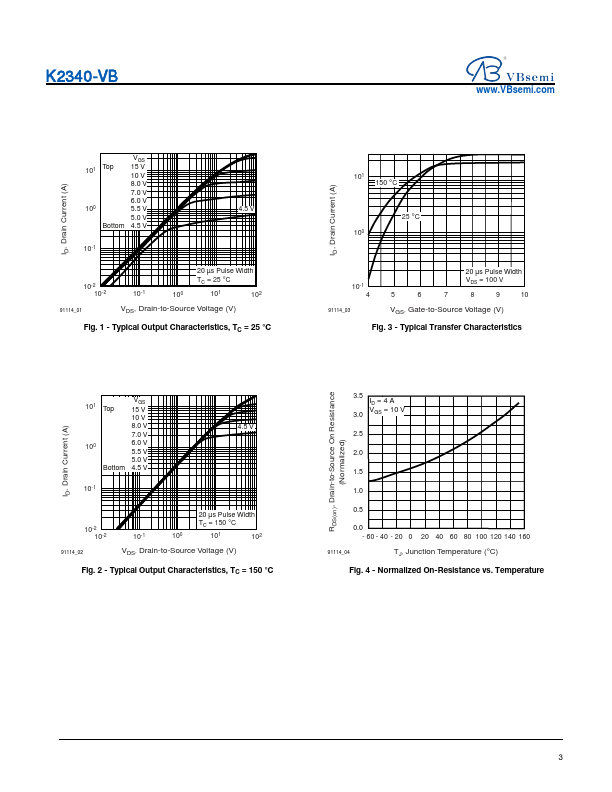

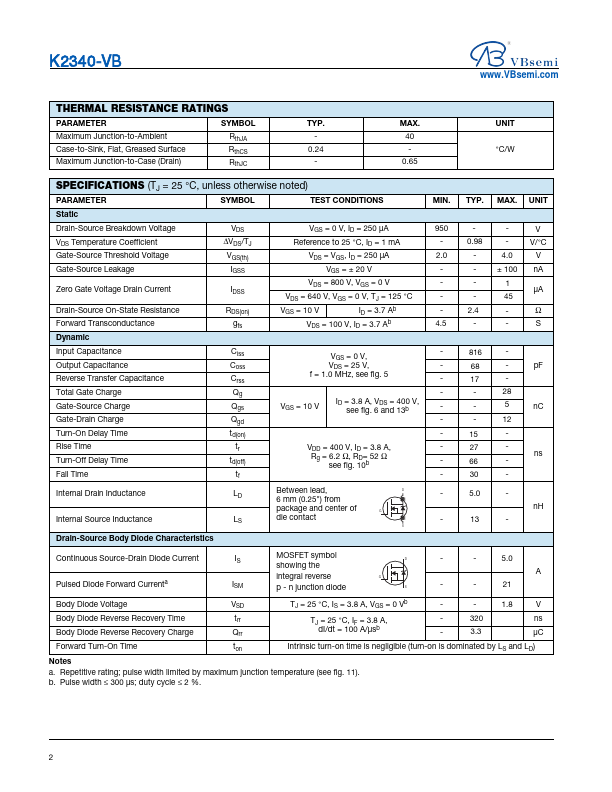

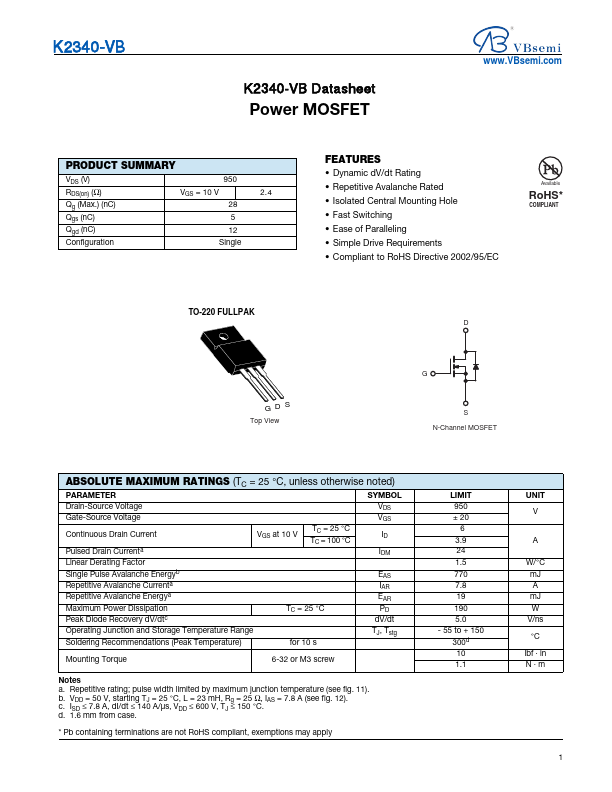

Preview of K2340 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
K2340
Manufacturer
VBsemi
File Size
378.93 KB
Datasheet
K2340-VBsemi.pdf
Description
Power MOSFET

Features

* Dynamic dV/dt Rating
* Repetitive Avalanche Rated
* Isolated Central Mounting Hole
* Fast Switching
* Ease of Paralleling
* Simple Drive Requirements
* Compliant to RoHS Directive 2002/95/EC Available RoHS
* COMPLIANT TO-220 FULLPAK GDS
