ME4950 Datasheet - VBsemi

ME4950, Dual N-Channel 100V MOSFET

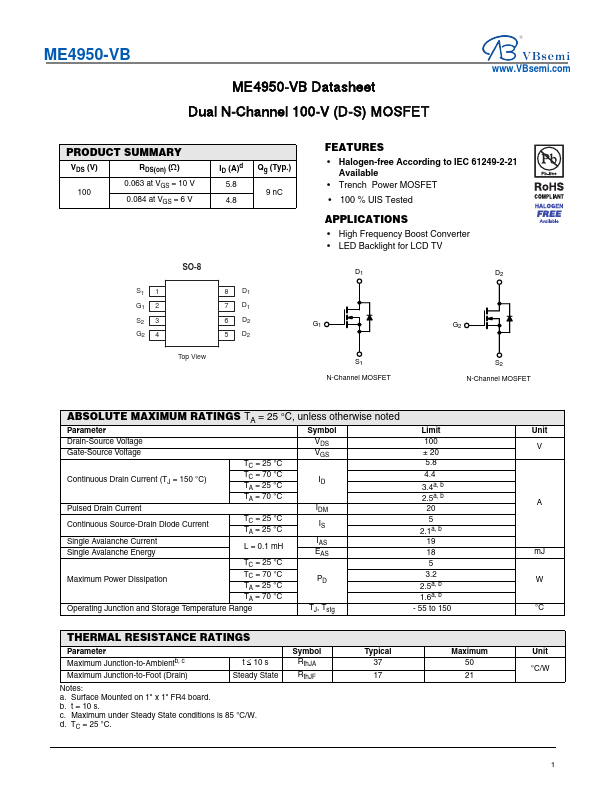

ME4950-VB ME4950-VB Datasheet Dual N-Channel 100-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.063 at VGS = 10 V 100 0.084.

datasheet Preview Page 1 from Datasheet4u.com

ME4950-VBsemi.pdf

ME4950 Datasheet Preview — Preview of ME4950 PDF

Datasheet Details

Part number:

ME4950

Manufacturer:

VBsemi

File Size:

272.62 KB

Description:

Dual N-Channel 100V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Available
* Trench Power MOSFET

Applications

* High Frequency Boost Converter
* LED Backlight for LCD TV D1 D2 G1 S1 N-Channel MOSFET G2 S2 N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulse
