P2N80 Power MOSFET

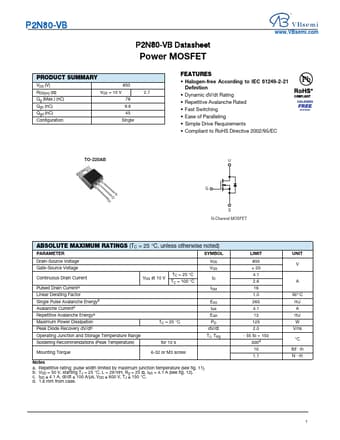

📥 Download Datasheet  Datasheet Preview Page 1

Description

P2N80-VB P2N80-VB Datasheet Power MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration 850 V.

📥 Download Datasheet

Preview of P2N80 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
P2N80
Manufacturer
VBsemi
File Size
511.73 KB
Datasheet
P2N80-VBsemi.pdf
Description
Power MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Dynamic dV/dt Rating
* Repetitive Avalanche Rated
* Fast Switching
* Ease of Paralleling
* Simple Drive Requirements
* Compliant to RoHS Directive 2002/95/EC TO-220AB D S D G G S N-Cha
