* Trench Power MOSFET
* 100 % Rg and UIS Tested
* Compliant to RoHS Directive 2011/65/EU D G S GD S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continu
P3055LTG Datasheet (275.90 KB)
P3055LTG
VBsemi
275.90 KB
N-channel 30v mosfet.

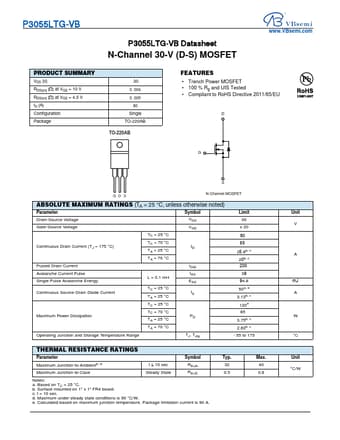

P3055LTG-VB P3055LTG-VB Datasheet N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () at VGS = 10 V RDS(on) () at VGS =.
