P3055LD Datasheet - Niko

P3055LD N-Channel Logic Level Enhancement Mode Field Effect Transistor

www.DataSheet4U.com NIKO-SEM N-Channel Logic Level Enhancement Mode Field Effect Transistor P3055LD TO-252 (DPAK) D PRODUCT SUMMARY V(BR)DSS 25 RDS(ON) 50mΩ ID 12A 1. GATE 2. DRAIN 3. SOURCE G S ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Avalanche Energy Repetitive Avalanche Energy Power Dissipation 2 1 SYMBOL VGS LIMITS ±20 12 8 45 60 3 48 20 -55 to 150 275 UNITS V TC = 25 °C.

P3055LD_Niko.pdf

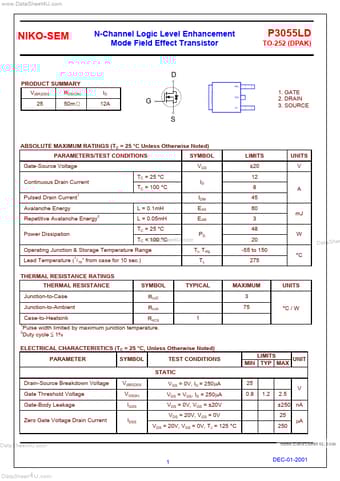

Preview of P3055LD PDF
P3055LD Datasheet Preview Page 2 P3055LD Datasheet Preview Page 3

Datasheet Details

Part number:

P3055LD

Manufacturer:

Niko

File Size:

381.88 KB

Description:

N-channel logic level enhancement mode field effect transistor.
