RJK0822SPN - N-Channel 80V MOSFET

Datasheet Summary

Features

  • Trench Power MOSFET.
  • 100 % Rg and UIS Tested.

📥 Download Datasheet

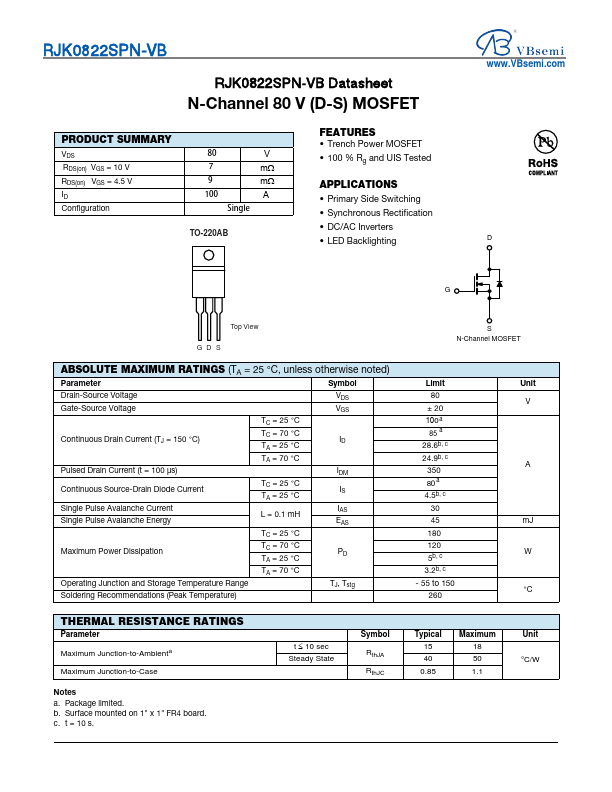

Datasheet preview – RJK0822SPN

Datasheet Details

Part number RJK0822SPN
Manufacturer VBsemi
File Size 385.71 KB
Description N-Channel 80V MOSFET
Datasheet download datasheet RJK0822SPN Datasheet

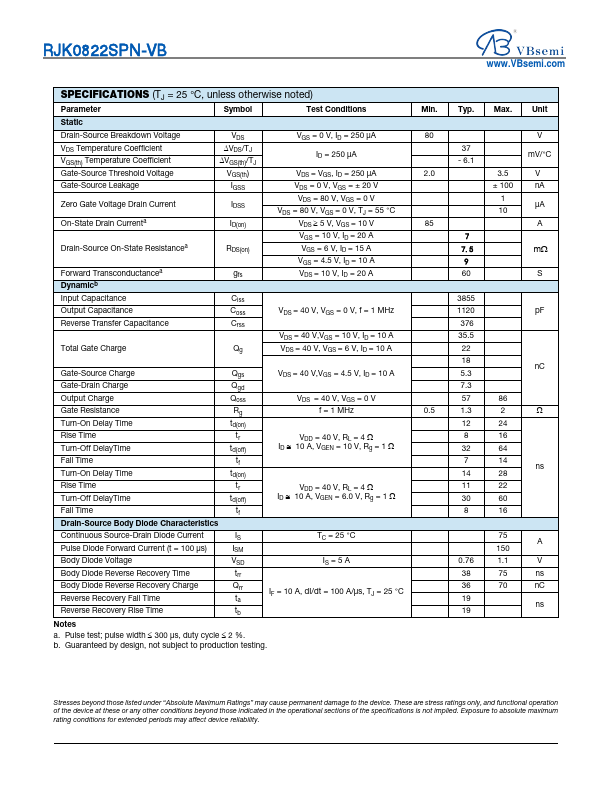

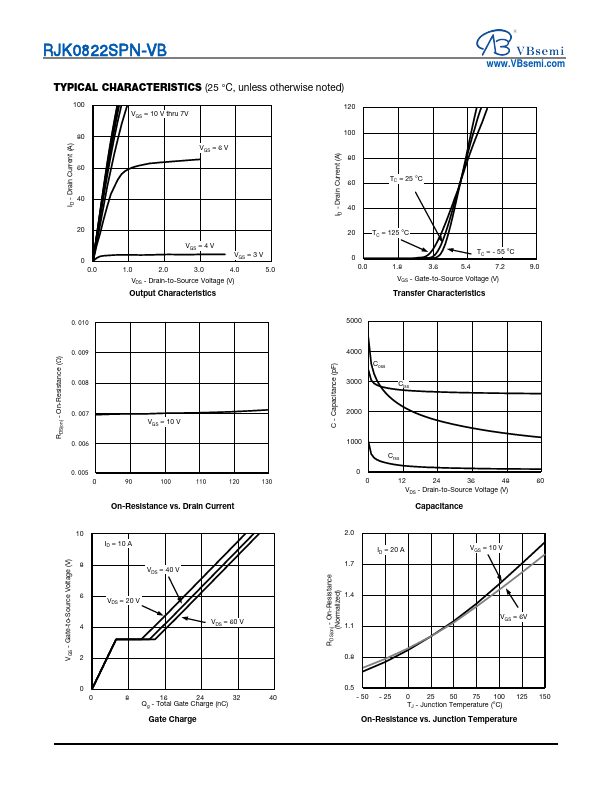

Additional preview pages of the RJK0822SPN datasheet.

📁 Similar Datasheet

  • RJK0822SPN - Silicon N Channel Power MOS FET (Renesas)
  • RJK0851DPB - Silicon N Channel Power MOS FET (Renesas Technology)
  • RJK0852DPB - Silicon N Channel Power MOS FET (Renesas Technology)
  • RJK0853DPB - Silicon N Channel Power MOS FET (Renesas Technology)
  • RJK0854DPB - Silicon N Channel Power MOS FET (Renesas Technology)
  • RJK0855DPB - Silicon N-Channel Power MOSFET (Renesas Technology)
  • RJK0856DPB - N-Channel Power MOSFET (Renesas Technology)
  • RJK005N03 - Drive Nch MOS FET (Rohm)
  • RJK005N03FRA - Nch 30V 500mA Small Signal MOSFET (Rohm)
  • RJK0204DPA - Silicon N Channel Power MOS FET (Renesas Technology)
Other Datasheets by VBsemi

Full PDF Text Transcription

Click to expand full text
RJK0822SPN-VB RJK0822SPN-VB Datasheet N-Channel 80 V (D-S) MOSFET PRODUCT SUMMARY VDS RDS(on) VGS = 10 V RDS(on) VGS = 4.5 V ID Configuration 80 V 7 mΩ 9 mΩ 100 A Single TO-220AB FEATURES • Trench Power MOSFET • 100 % Rg and UIS Tested APPLICATIONS • Primary Side Switching • Synchronous Rectification • DC/AC Inverters • LED Backlighting www.VBsemi.
