Datasheet Specifications
- Part number
- SI2335DS-T1
- Manufacturer
- VBsemi
- File Size
- 898.15 KB
- Datasheet
- SI2335DS-T1-VBsemi.pdf
- Description
- P-Channel 30V MOSFET
Description

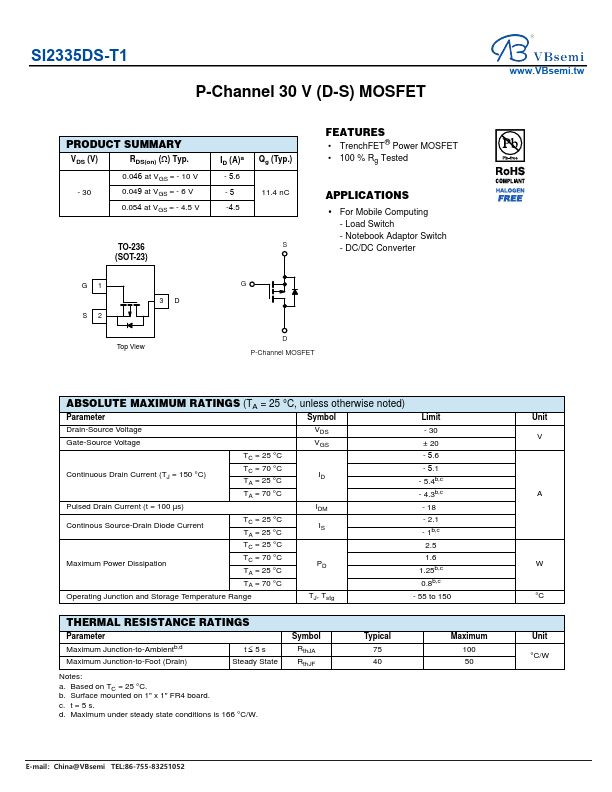

SI2335DS-T1 P-Channel 30 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () Typ.0.046 at VGS = - 10 V - 30 0.049 at VGS = - 6 V 0.054 at VGS .
Features
* TrenchFET® Power MOSFETApplications
* For Mobile Computing - Load Switch - Notebook Adaptor Switch - DC/DC Converter G1 S2 3D Top View G D P-Channel MOSFET www. VBsemi. tw ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Drain-Source Voltage Gate-Source Voltage Continuous Drain CurreSI2335DS-T1 Distributors
