STB200NF03T4 - N-Channel 30V MOSFET

STB200NF03T4 Description

STB200NF03T4-VB STB200NF03T4-VB Datasheet N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 30 RDS(on) () 0.0023 at VGS = 10 V 0.

STB200NF03T4 Features

* Trench Power MOSFET
* 100 % Rg and UIS Tested

STB200NF03T4 Applications

* OR-ing
* Server
* DC/DC G D S S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 30 V VGS ± 20 TC = 25 °C 150 Continuous Drain Current (TJ = 175 °C) TC =

📥 Download Datasheet

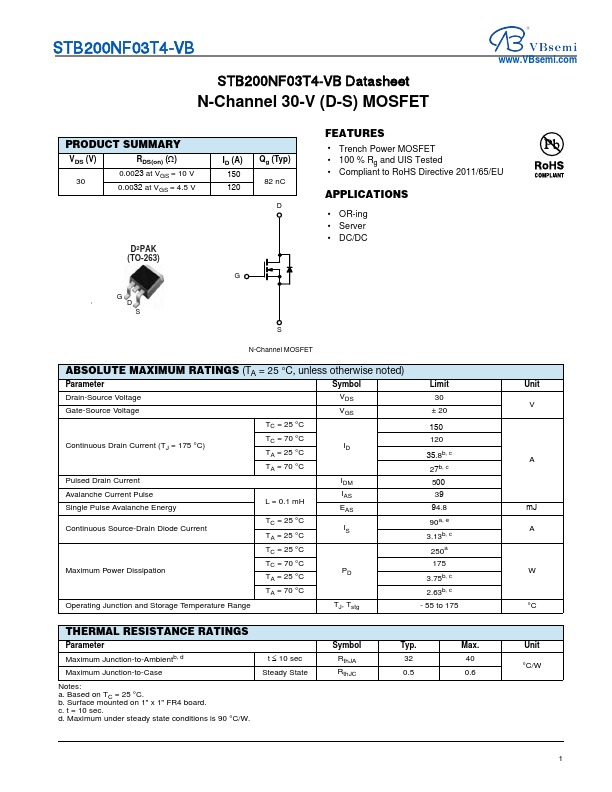

Preview of STB200NF03T4 PDF

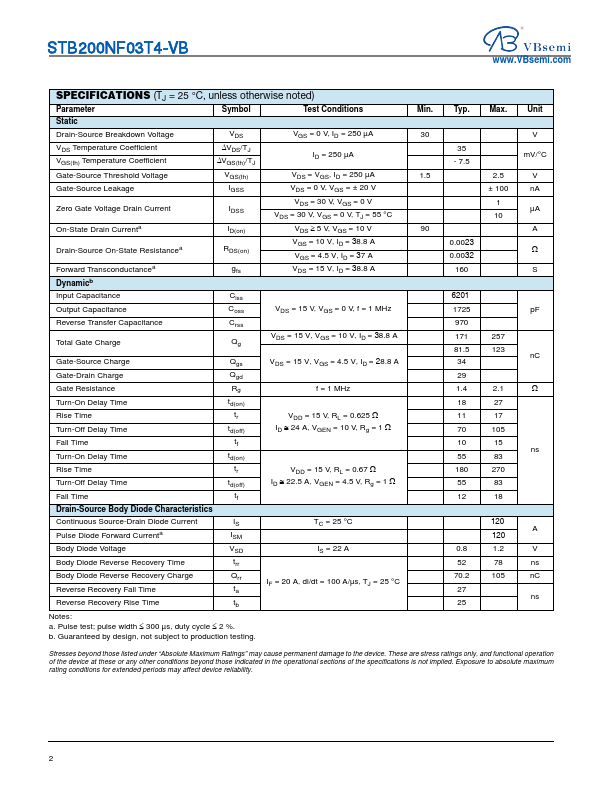

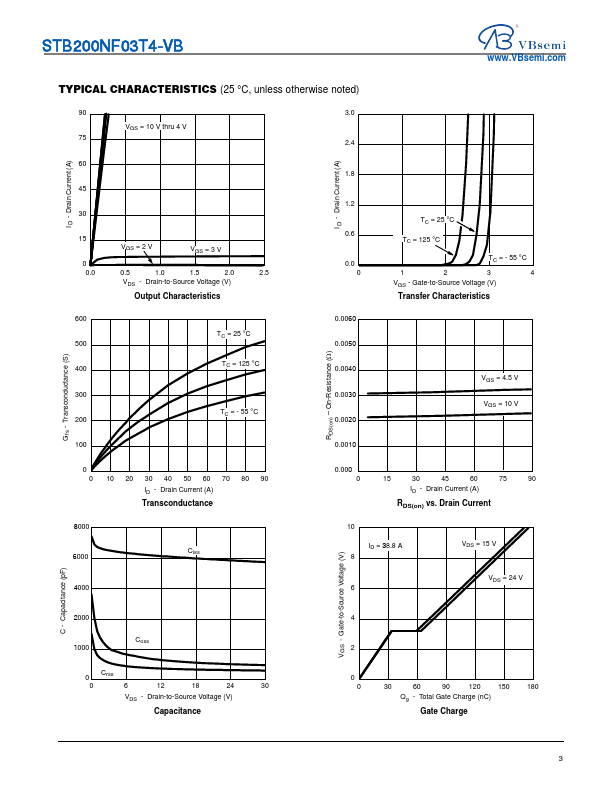

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STB200NF03T4
Manufacturer
VBsemi
File Size
252.80 KB
Datasheet
STB200NF03T4-VBsemi.pdf
Description
N-Channel 30V MOSFET
