STB20NM60 - N-Channel 650V Power MOSFET

Product Overview

VBsemi

📥 Download Datasheet

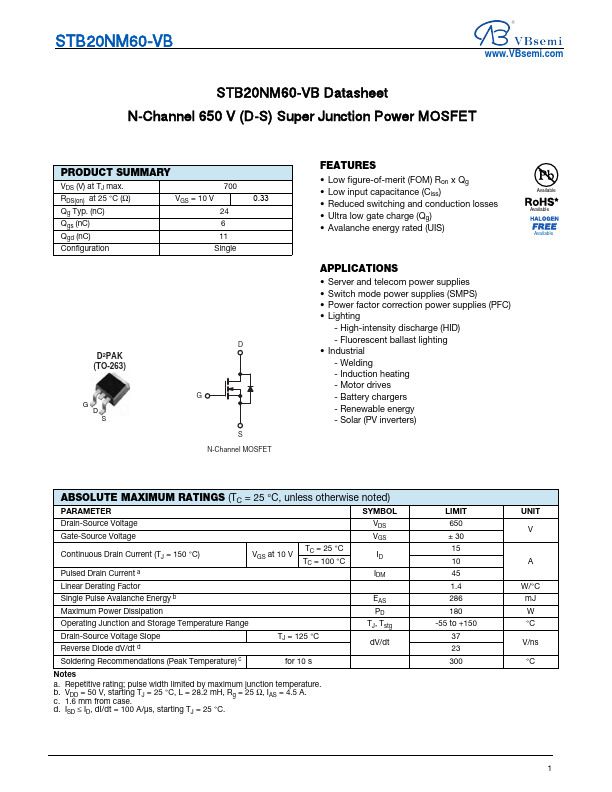

STB20NM60 N-Channel 650V Power MOSFET by VBsemi - Datasheet Preview — Datasheet preview – STB20NM60

Datasheet Details

Part number	STB20NM60
Manufacturer	VBsemi
File Size	291.11 KB
Description	N-Channel 650V Power MOSFET
Datasheet	STB20NM60 Datasheet

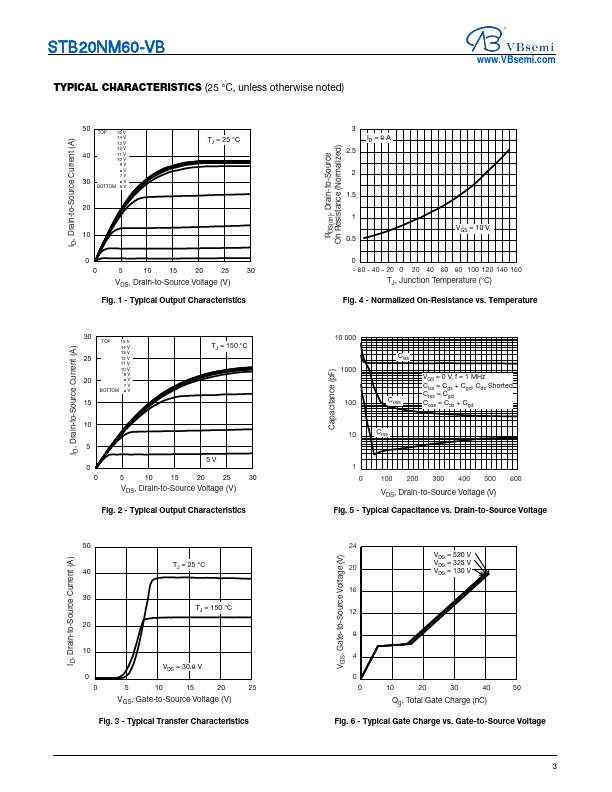

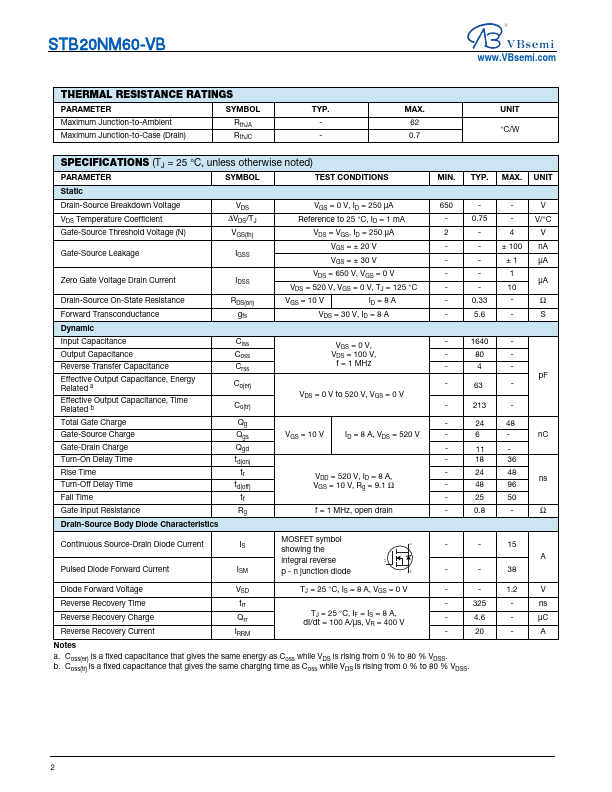

Additional preview pages of the STB20NM60 datasheet.

Product details

Features

Low figure-of-merit (FOM) Ron x Qg.
Low input capacitance (Ciss).
Reduced switching and conduction losses.
Ultra low gate charge (Qg).
Avalanche energy rated (UIS) Available Available Available.
