STU417S P-Channel MOSFET

VBsemi

STU417S Description

STU417S P-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.018 at VGS = - 10 V 0.025 at VGS = - 4.5 V ID (.

STU417S Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET

STU417S Applications

* Load Switch
* Battery Switch GD S D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C ID Pulsed Drain C

📥 Download Datasheet

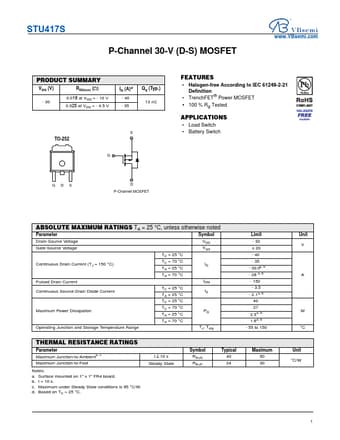

STU417S Datasheet Preview — Preview of STU417S PDF

Datasheet Details

Part number: STU417S
Manufacturer: VBsemi
File Size: 454.32 KB
Datasheet: STU417S-VBsemi.pdf
Description: P-Channel MOSFET
