W20NM60FD N-Channel 650V Power MOSFET

VBsemi

Description

W20NM60FD-VB www.VBsemi.com W20NM60FD-VB Datasheet N-Channel 650 V (D-S) Super Junction Power MOSFET PRODUCT SUMMARY VDS (V) at TJ max.RDS(on) at.

📥 Download Datasheet

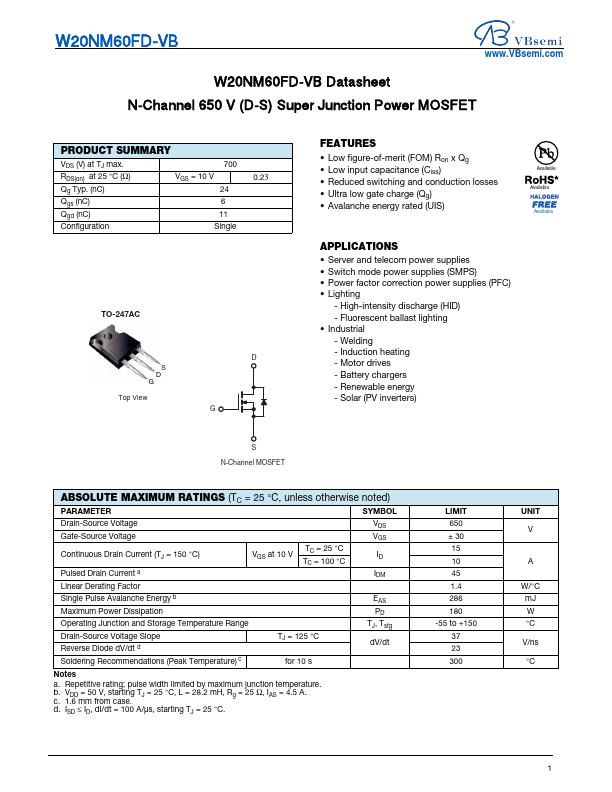

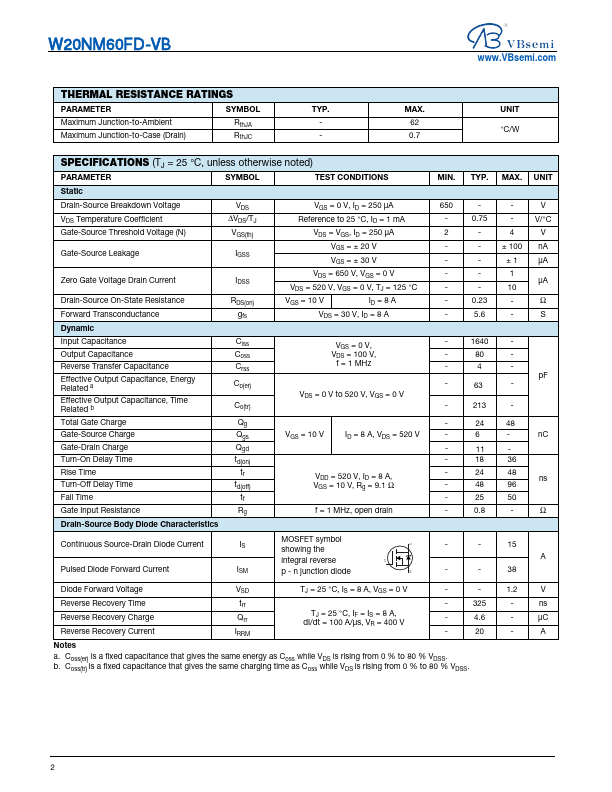

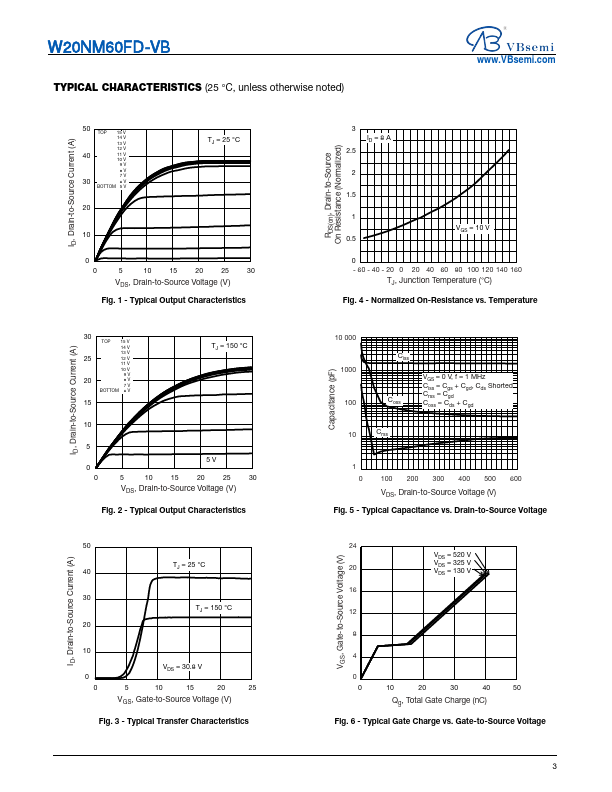

W20NM60FD Datasheet Preview — Preview of W20NM60FD PDF

Datasheet Specifications

Part number: W20NM60FD
Manufacturer: VBsemi
File Size: 260.41 KB
Datasheet: W20NM60FD-VBsemi.pdf
Description: N-Channel 650V Power MOSFET

Features

* Low figure-of-merit (FOM) Ron x Qg
* Low input capacitance (Ciss)
* Reduced switching and conduction losses
* Ultra low gate charge (Qg)

Applications

* Server and telecom power supplies
* Switch mode power supplies (SMPS)
* Power factor correction power supplies (PFC)
* Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
* Industrial - Welding - Induction heating - Motor drives - Batter

W20NM60FD Distributors
