VT6304 Datasheet - VIA

VT6304 1394.A 4 PORT PHYSICAL LAYER CHIP

No. Name Type O I Description Link on. Indicates the reception of a link-on packet or port event occurs by asserting a 6.114 MHZ signal. Link power status. LPS is connected to either the VDD supplying the LINK or to a pulsed output that is active when the LINK is powered for the purpose of monitor.

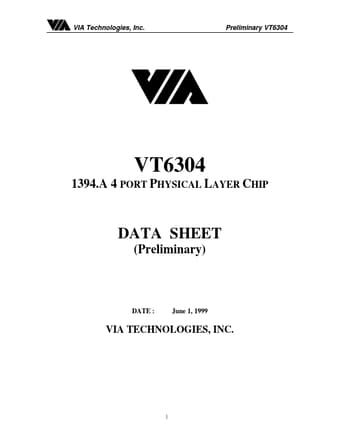

VIA Technologies, Inc. Preliminary VT6304 VT6304 1394.A 4 PORT PHYSICAL LAYER CHIP DATA SHEET (Preliminary) DATE : June 1, 1999 VIA TECHNOLOGIES, INC. 1 VIA Technologies, Inc. Preliminary VT6304 PRELIMINARY RELEASE Please contact Via Technologies for the latest documentation. Copyright Notice: Copyright © 1998, Via Technologies Incorporated. Printed in Taiwan. ALL RIGHTS RESERVED. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or tr.

VT6304 Features

* n n Supports Provisions of IEEE 1394-1995 Standard for High Performance Serial Bus and the P1394a Supplement 2.0. Full P1394a Supplement Support includes: n Arbitrated short reset, n Connection Debounce, n Multispeed Concatenation, n Ack Accelerated Arbitration, n Fly-By Concatenation, n Programmabl

VT6304 Datasheet (126.31 KB)
