PI3301-01 - ZVS Switching Regulators

Product Overview

VICOR

Datasheet Details

Part number	PI3301-01
Manufacturer	VICOR
File Size	1.75 MB
Description	ZVS Switching Regulators
Datasheet	PI3301-01 Datasheet
Note	This datasheet PDF includes multiple part numbers: PI3301-01, PI3311-01. Please refer to the document for exact specifications by model.

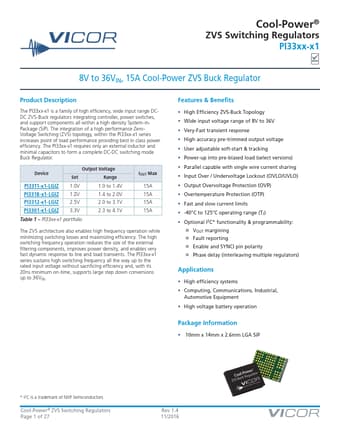

Additional preview pages of the PI3301-01 datasheet.

Product details

Description

The PI33xx-x1 is a family of high efficiency, wide input range DCDC ZVS-Buck regulators integrating controller, power switches, and support components all within a high density System-inPackage (SiP).

Features

& Benefits.
High Efficiency ZVS-Buck Topology.
Wide input voltage range of 8V to 36V.
Very-Fast transient response.
High accuracy pre-trimmed output voltage.
User adjustable soft-start & tracking.
Power-up into pre-biased load (select versions).
Parallel capable with single wire current sharing.
Input Over / Undervoltage Lockout (OVLO/UVLO).
Output Overvoltage Protection (OVP).
Overtemperature Pro.
