PI3301-00 Datasheet, regulators equivalent, VICOR

PI3301-00 Features

  • Regulators & Benefits
  • High Efficiency ZVS-Buck Topology
  • Wide input voltage range of 8V to 36V
  • Very-Fast transient response
  • High accuracy pre-trimmed output

PDF File Details

Part number:

PI3301-00

Manufacturer:

VICOR

File Size:

3.02MB

Download:

📄 Datasheet

Description:

Zvs switching regulators. The PI33xx-x0 is a family of high efficiency, wide input range DC‑DC ZVS-Buck regulators integrating controller, power switches, and

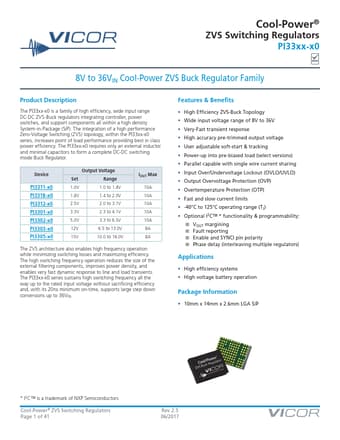

Datasheet Preview: PI3301-00 📥 Download PDF (3.02MB)
Page 2 of PI3301-00 Page 3 of PI3301-00

PI3301-00 Application

  • Applications
  • High efficiency systems
  • High voltage battery operation Package Information
  • 10mm x 14mm x 2.6mm LGA SiP <

TAGS

PI3301-00
ZVS
Switching
Regulators
VICOR
